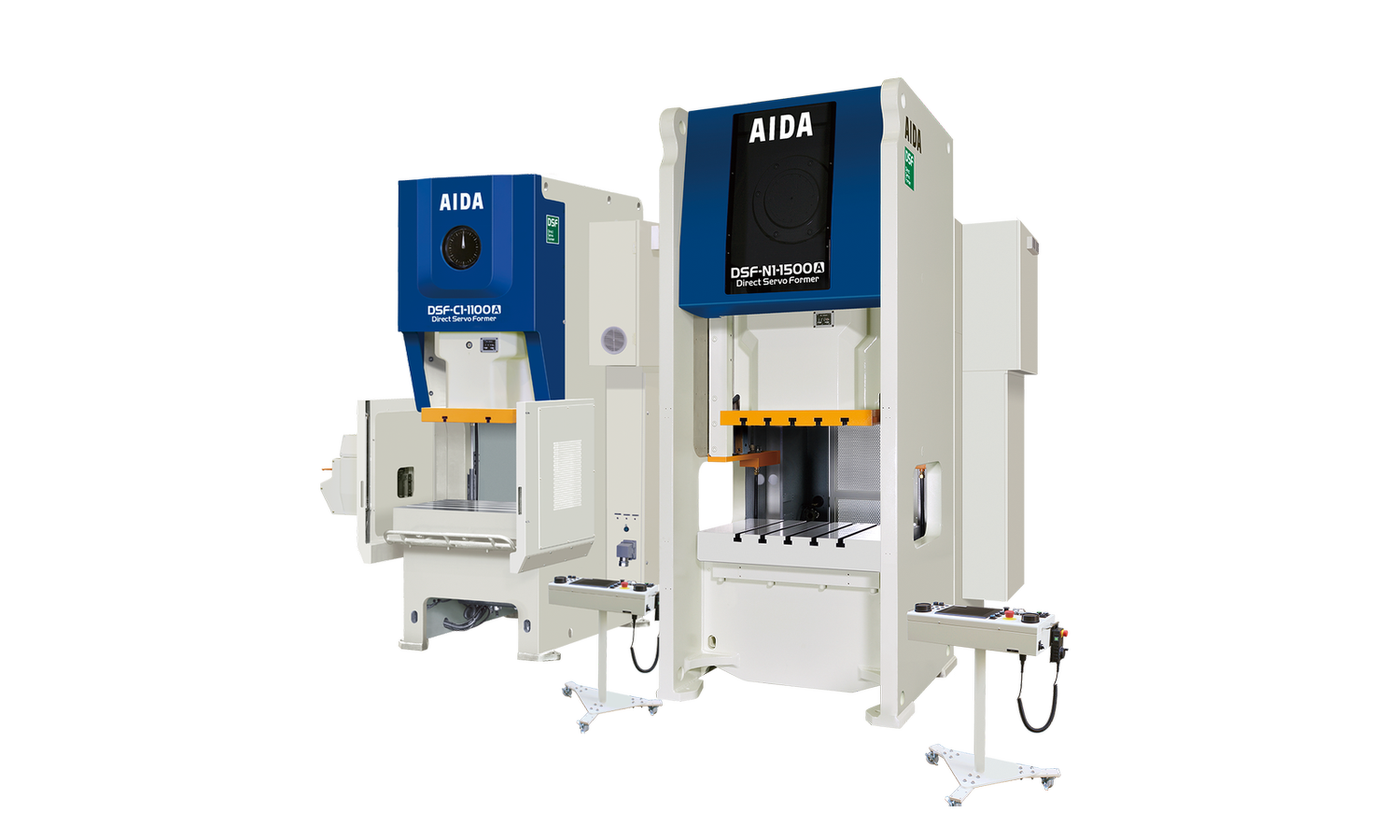

DSF-N1-A/
DSF-C1-A

Programmable Motion
x
High Formability

AIDA's low-speed, high torque servo motors
enable users to make highly flexible motion settings.
This enables the high-precision forming of
a wide array of materials and product shapes.

Product Features

seikeisei Formability

Formability

Deep Draw-Forming of Irregular-Shaped SUS Material
(1 Stage)

By using an optimized slide motion, it became possible to deep-draw irregular-shaped products in a single stage without seeing the cracking that inevitably occur when using a mechanical press.

seikeisei Formability

Customers must register before
downloading specification sheets.

Customer Registration Page

Formability

Forming Crack-Free Magnesium Materials

The deep drawing of magnesium material is performed using a hot forming process. The freely programmable motion enables the high-precision forming of low-formability materials.

Press Parts

Glasses Frame Component

Total Length 20 mm

Multifunction Machine Part

Total Length 60 mm

Refrigerator Component (Screw)

O.D. Φ40 mm

Product Specifications

Model	Unit	DSF-N1-800A	DSF-N1-1100A	DSF-N1-1500A	DSF-N1-2000A	DSF-N1-3000A
Capacity	（kN）	800	1100	1500	2000	3000
Slide Stroke	（mm）	160	180	200	250	300
No-Load SPM	（min-1）	1-80	1-70	1-60	1-50	1-35
Die Height	（mm）	320	350	400	450	570
Slide Dimensions (L/R x F/B)	（mm）	700×460	800×520	900×580	1000×650	1300×900
Bolster Dimensions (L/R x F/B)	（mm）	900×600	1000×680	1100×760	1130×840	1500×1000

Model	Unit	DSF-C1-800A	DSF-C1-1100A	DSF-C1-1500A	DSF-C1-2000A	DSF-C1-2500A
Capacity	（kN）	800	1100	1500	2000	2500
Slide Stroke	（mm）	160	180	200	250	300
No-Load SPM	（min-1）	1～80	1～70	1～60	1～50	1～40
Die Height	（mm）	320	350	400	450	540
Slide Dimensions (L/R x F/B)	（mm）	540×460	630×520	700×580	880×650	1100×730
Bolster Dimensions (L/R x F/B)	（mm）	810×600	940×680	1050×760	1240×840	1610×900
