Mid-Size and Large Servo Presses

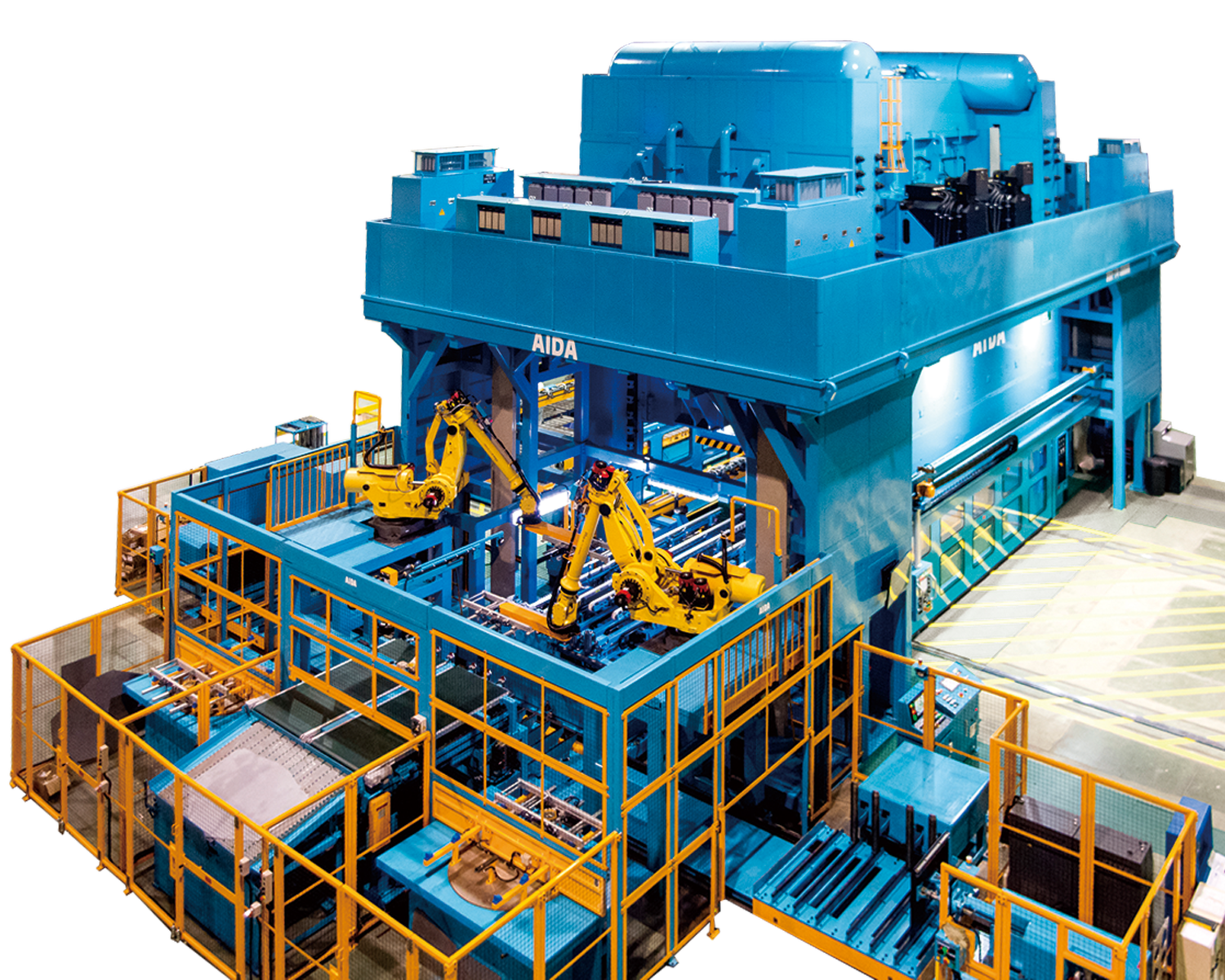

DSF-T

Pendulum Motion
x
Transfer Forming

Optimal synchronized motion
by running in pendulum motion
mode with a transfer feeder.

Product Specifications

Model   Unit DSF-T-3000 DSF-T-4000 DSF-T-5000 DSF-T-6000 DSF-T-8000 DSF-T-10000
Capacity （kN）  3000 4000 5000 6000 8000 10000
stroke length （mm） 360 410 460 510 510 800
Continuous spm (No Load) （min-1） 20~40 15~35 15~35 15~35 15~35 12~30
Die height （mm） 750 750 900 900 1060 1000
Slide adjustment （mm） 100 100 100 100 170 200
Slide area (LR×FB) （mm） 2850x1000 3600x1200 3600x1200 3600x1200 3600x1600 5100x1800
Bolster area (LR×FB) （mm） 2850x1000 3600x1200 3600x1200 3600x1200 3600x1600 5100x1800
Model   Unit DSF-T-12000 DSF-T-15000 DSF-T-20000 DSF-T-25000 DSF-T-30000 DSF-T-35000
Capacity （kN）  12000 15000 20000 25000 30000 35000
Rated capacity point （mm） 13 13 13 13 13 13
stroke length （mm） 650 800 750 800 800 800
Continuous spm (No Load) （min-1） 15~30 13~30 13~30 13~30 13~30 13~30
Die height （mm） 1000 1100 1150 1200 1200 1200
Slide adjustment （mm） 200 200 200 250 250 250
Slide area (LR×FB) （mm） 4800x1600 5400x2200 6000x2000 6150x2300 6150x2300 6150x2300
Bolster area (LR×FB) （mm） 4800x1600 5400x2200 6000x2000 6150x2300 6150x2300 6150x2300

・As a general rule, DSF-T Series presses are custom-designed.
・Custom-designed mechanical drivetrains can also be accommodated.
Note: These specifications are subject to change without notice.
