High Speed Automatic Presses

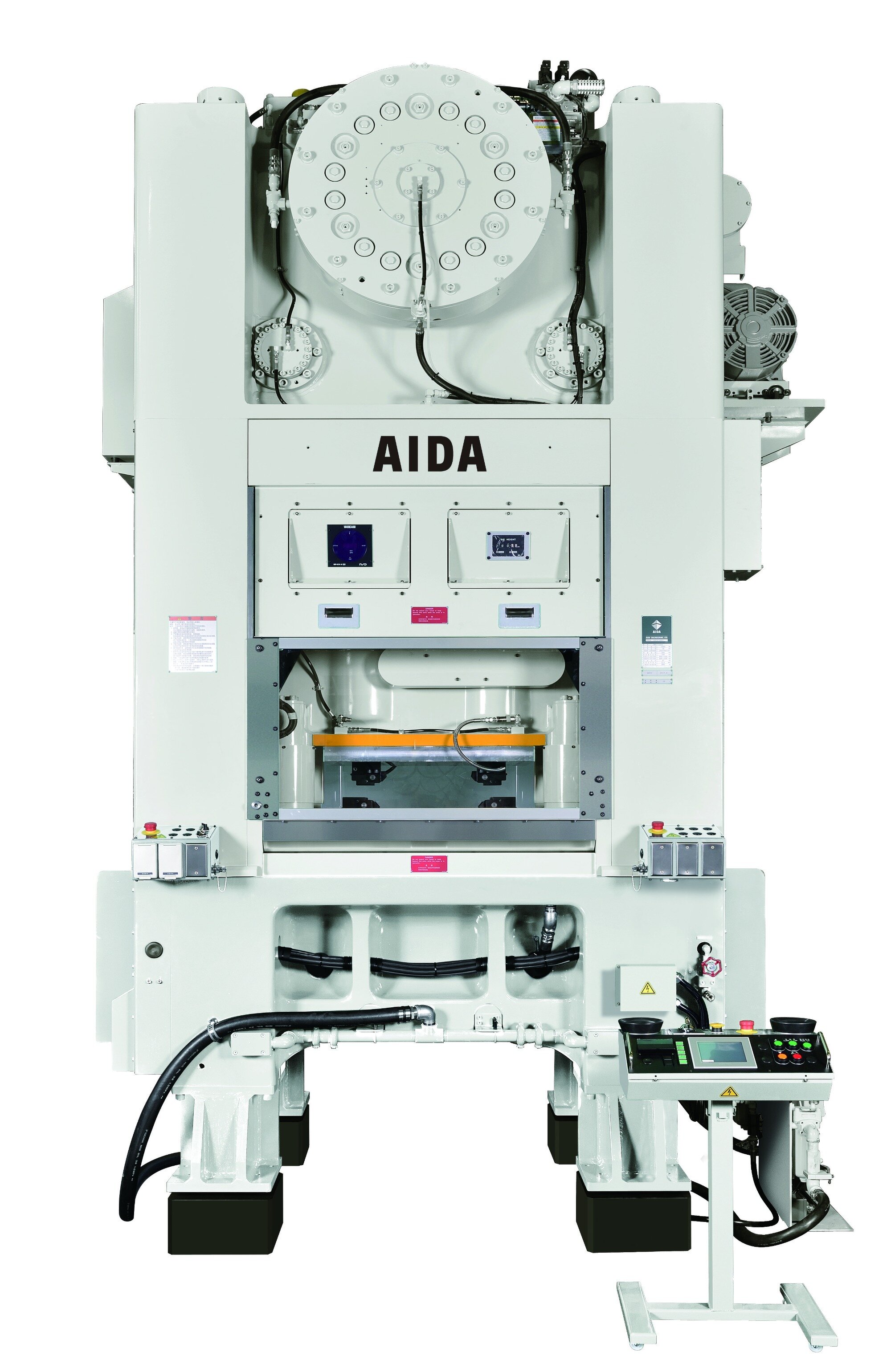

HMX-S

High-Precision Forming
x
High Speed

Optimal for the high-precision blanking
of chain components from thick plates.

Product Specifications

Model   Unit HMX-1250S
Capacity (kN)  1250
stroke length (mm) 16
Continuous spm (No Load) (min-1) 200~1000
Die height (mm) 340
Slide area (LR×FB) (mm) 800×450
Bolster area (LR×FB) (mm) 800×500

*1: Stroke lengths up to 80 mm are available.
*2: Please select a die height within the above ranges.
Note: These specifications are subject to change without notice.

Please contact AIDA for detailed specifications.
