High Speed Automatic Presses

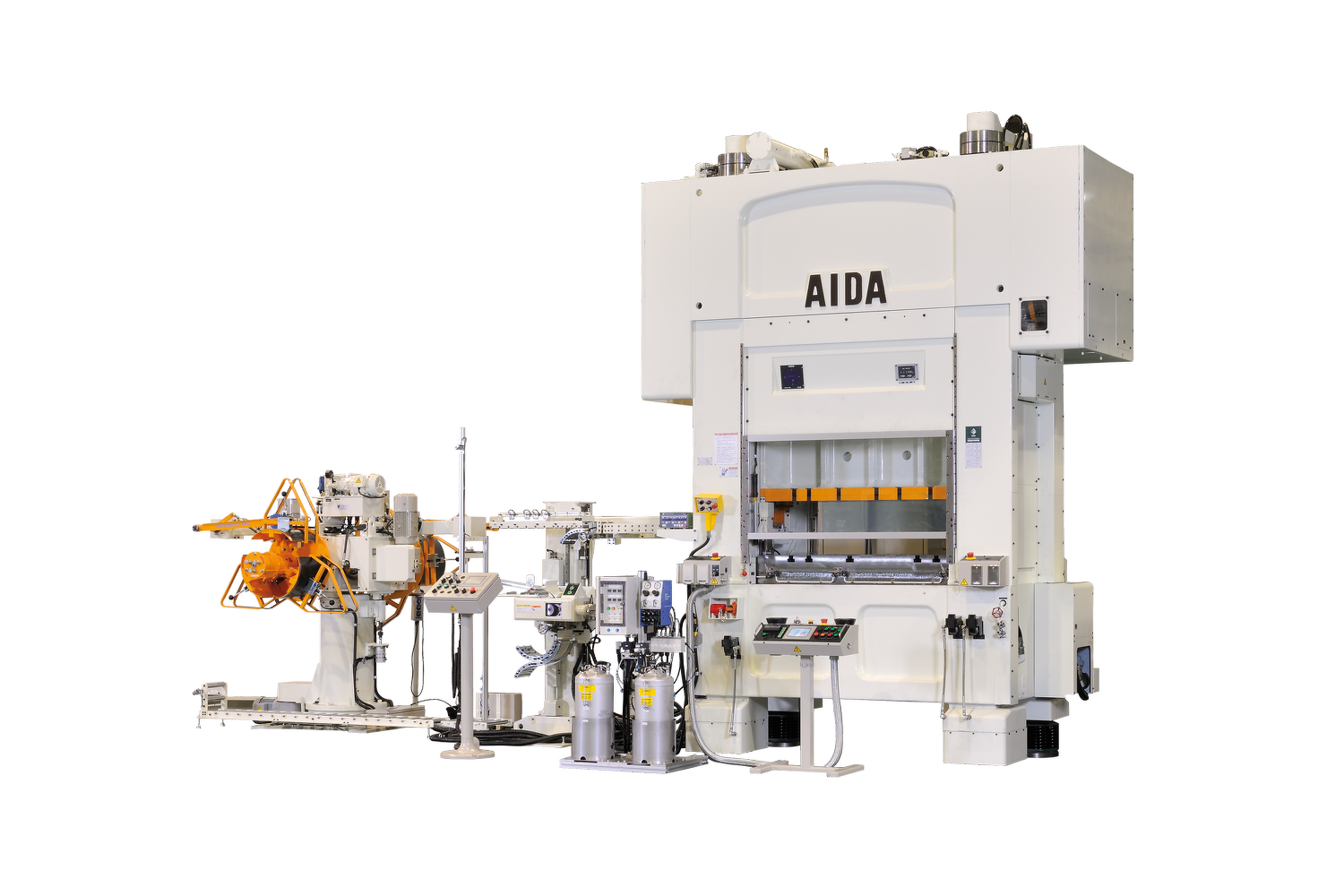

HMX
High Speed
x
High-Precision Forming
Enables all types of high-precision forming,
ranging from small parts and stacked motor cores
to the blanking of thick plates for chains and large motor cores.
Product Specifications
| Model | Unit | HMX-1250 | HMX-2000 | HMX-3000 | HMX-3000W |
| Capacity | （kN） | 1250 | 2000 | 3000 | 3000 |
| stroke length | （mm） | 30 | 30 | 30 | 30 |
| Continuous spm (No Load) | （min-1） | 200～800 | 200～600 | 160～500 | 120～410 |
| Die height | （mm） | 380～430 | 400～480 | 420～520 | 420～520 |
| Slide area (LR×FB) | （mm） | 1300×600 | 1700×650 | 2000×750 | 2260(2300)×1000*1 |
| Bolster area (LR×FB) | （mm） | 1300×850 | 1700×950 | 2000×1000 | 2300×1200 |
*1: The dimension shown in ( ) denotes the maximum die mounting area.
Note: These specifications are subject to change without notice.
