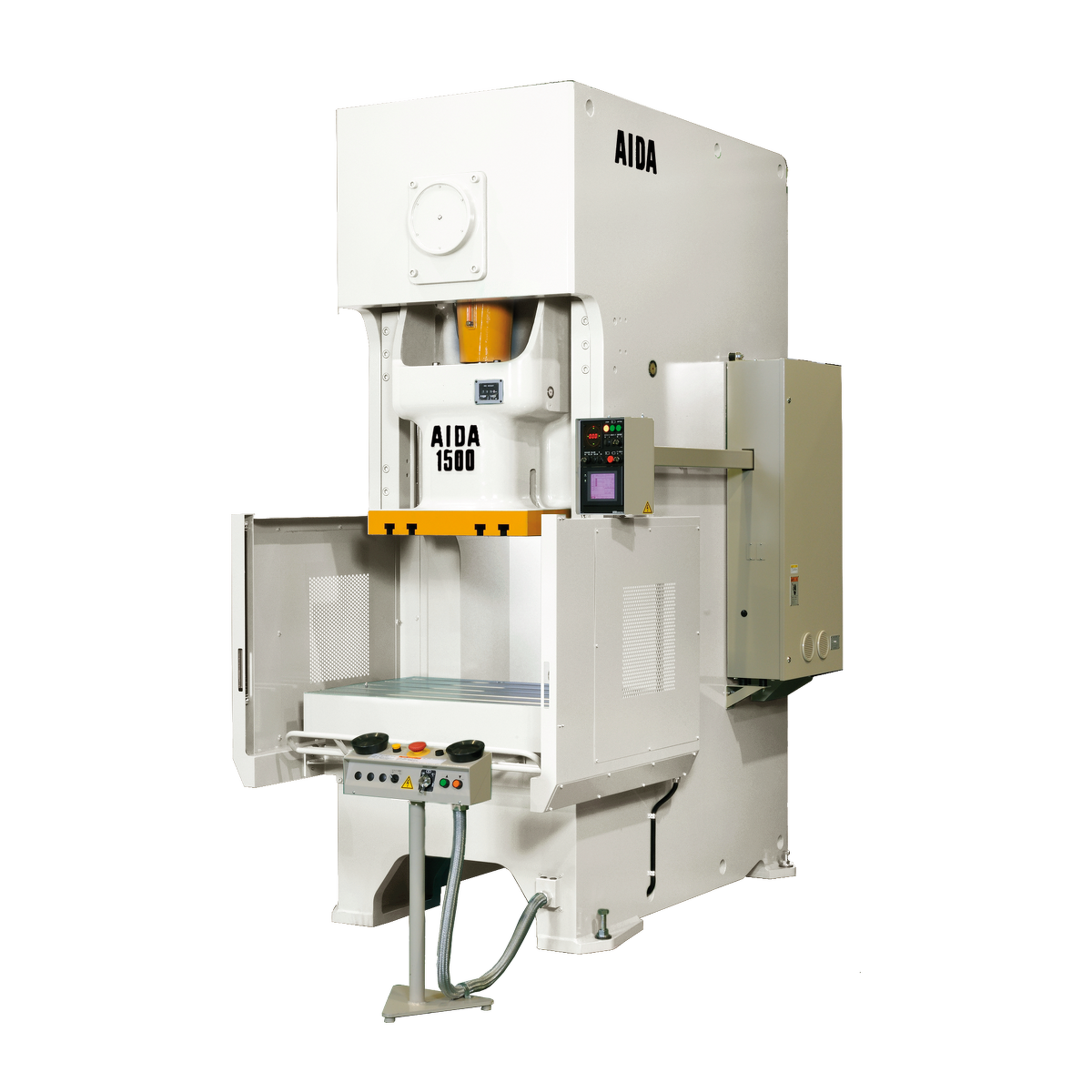

NC1-E
High-Performance
x
Basic Machines
The highly-rigid frame construction minimizes
the frame elongation and deflection that
occurs during stamping. ※Eligible for tax incentives.

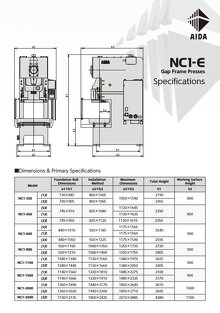

Product Specifications
| Model | NC1-350 | NC1-450 | NC1-600 | NC1-800 | |||||||
| Unit | (1)E | (2)E | (1SE | (1)E | (2)E | (S)E | (1)E | (2)E | (1)E | (2)E | |
| Capacity | （kN） | 350 | 450 | 600 | 800 | ||||||
| stroke length | （mm） | 70 | 120 | 50 | 80 | 120 | 55 | 90 | 140 | 100 | 160 |
| Continuous spm (No Load) | （min-1） | 90～150 | 55～105 | 85～175 | 65～130 | 50~95 | 80～165 | 60～120 | 45～85 | 55～110 | 40～75 |
| Die height | （mm） | 200 | 250 | 250 | 270 | 270 | 300 | 300 | 320 | ||
| Slide area (LR×FB) | （mm） | 380×300 | 410×340 | 480×400 | 540×460 | ||||||
| Bolster area (LR×FB) | （mm） | 730×310 | 730×380 | 810×360 | 810×440 | 870×400 | 870×520 | 950×460 | 950×600 | ||
| Model | NC1-1100 | NC1-1500 | NC1-2000 | NC1-2500 | ||||
| Unit | (1)E | (2)E | (1)E | (2)E | (1)E | (2)E | (2)E | |
| Capacity | （kN） | 1100 | 1500 | 2000 | 2500 | |||
| stroke length | （mm） | 110 | 180 | 130 | 200 | 160 | 250 | 300 |
| Continuous spm (No Load) | （min-1） | 50～100 | 35～65 | 40～85 | 30～55 | 35～70 | 25～45 | 20～35 |
| Die height | （mm） | 320 | 350 | 350 | 400 | 410 | 450 | 540 |
| Slide area (LR×FB) | （mm） | 630×520 | 700×580 | 880×650 | 1100×730 | |||
| Bolster area (LR×FB) | （mm） | 1070×520 | 1070×680 | 1170×600 | 1170×760 | 1390×680 | 1390×840 | 1750×900 |
Note: These specifications are subject to change without notice.
