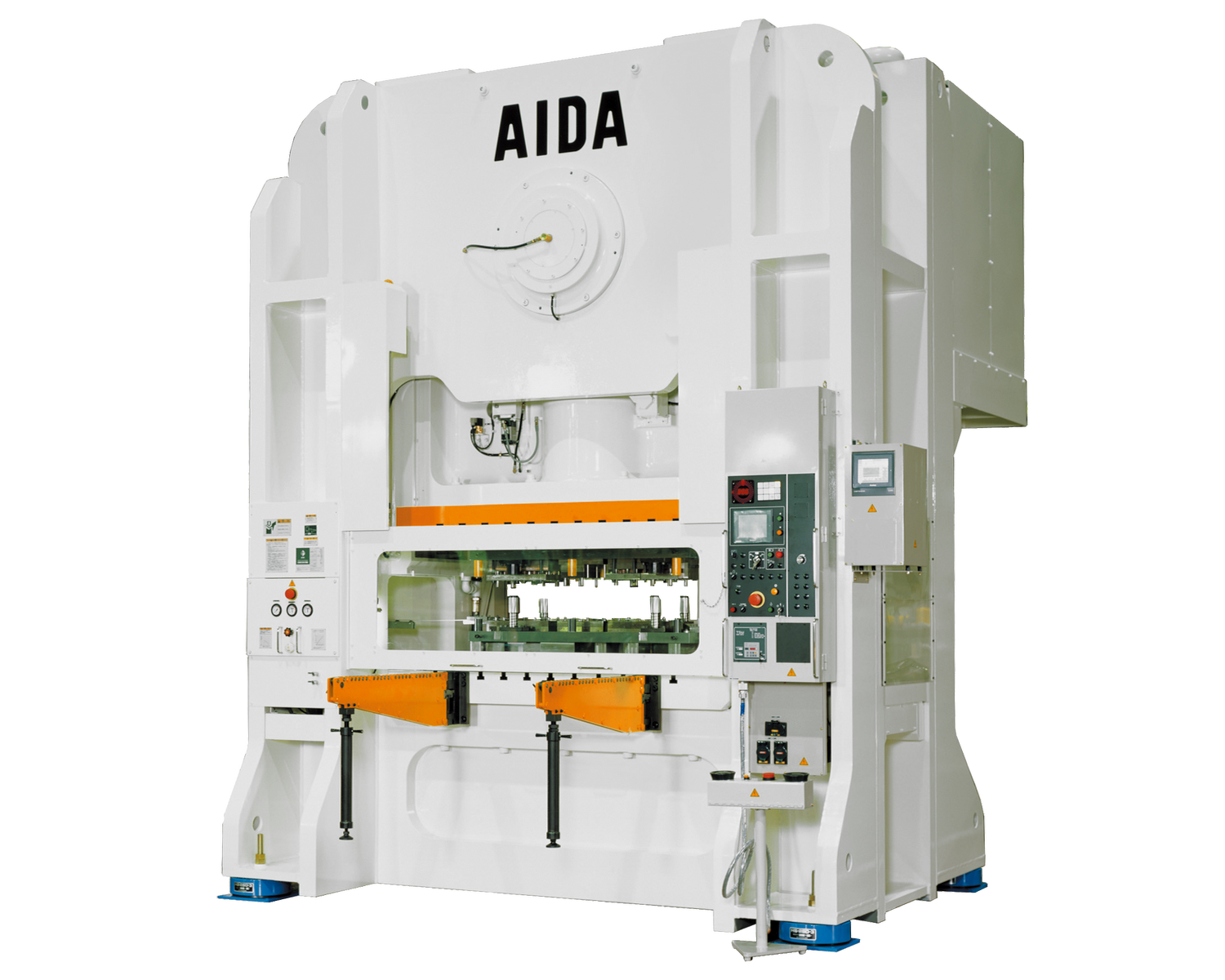

UL
High Rigidity
x
New Dimensions
in Metalforming
The innovative slide design
with its '9-point support' and
the zero-clearance slide gibs
open up new dimensions
in high-precision, high
value-added forming.
Product Features
Enables high-precision forming of counterbores and embossed areas as well as full circumferential shear-blanking under off-center load conditions.
Flow Control Forming (FCF)
Cup with Internal Gear
(3 Stages)
Forming sheet materials using FCF methodologies. Enables customers to transition from cold forging methodologies while also reducing forming loads and the number of forming stages.
downloading specification sheets.
Clutch Plate Forming
(Thick Sheet Forming)
Forming high-precision clutch plates with more than double the productivity of fine blanking.
downloading specification sheets.
Transfer Forming
(Thick Sheet Forming)
Transfer forming using a UL-10000 and a UL-6000 press. Pursuing dimensional stability and high material yields to stably produce value-added products.
Press Parts
Separator (for fuel-cell hybrid vehicles)
Total Length 90 mm Thickness 0.1 mm
Clutch Plate
O.D. Φ110 mm
Transmission (CVT) Component
O.D. Φ70 mm
Product Specifications
| Model | Unit | UL-2000(1)-155-83 | UL-3000(1)-200-90 | UL-4000(1)-200-90 | UL-5000(1)-200-95 | UL-6000(1)-185-100 |
| Capacity | （kN） | 2000 | 3000 | 4000 | 5000 | 6000 |
| stroke length | （mm） | 200 | 200 | 250 | 250 | 250 |
| Continuous spm (No Load) | （min-1） | 30～80 | 30～80 | 30～70 | 30～70 | 30～70 |
| Die height | （mm） | 450 | 550 | 600 | 600 | 700 |
| Slide area (LR×FB) | （mm） | 1550×830 | 2000×900 | 2000×900 | 2000×950 | 1850×1000 |
| Bolster area (LR×FB) | （mm） | 1550×950 | 2000×1000 | 2000×1000 | 2000×1050 | 1850×1100 |
Note: We have other specifications aside from the ones shown above. Please contact AIDA for more details.
: These specifications are subject to change without notice.
Catalog Download
DSF-U/UL Series Catalog

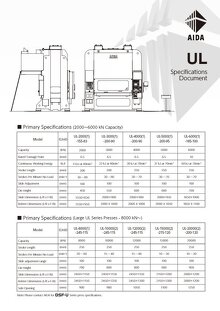

DSF-U/UL Series Specification Sheet
