DIRECT SERVO PRESS
DSF-N2
High Productivity
x
Operability
The versatile motions of the DSF Series
expand the range of metalforming.
※Eligible for tax incentives.

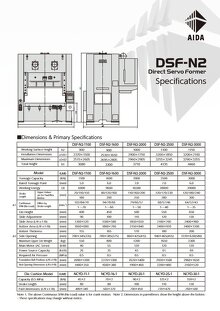

Product Specifications
| Models | Unit | DSF-N2-1100 | DSF-N2-1600 | DSF-N2-2000 | DSF-N2-2500 | DSF-N2-3000 |
| Capacity | （kN） | 1100 | 1600 | 2000 | 2500 | 3000 |
| stroke length | （mm） | 180 | 200 | 250 | 280 | 300 |
| Continuous spm (No Load) | （min-1） | 1～70 | 1～60 | 1～50 | 1～40 | 1～35 |
| Die height | （mm） | 400 | 450 | 500 | 550 | 650 |
| Slide area (LR×FB) | （mm） | 1360×520 | 1500×580 | 1850×650 | 2100×700 | 2400×900 |
| Bolster area (LR×FB) | （mm） | 1660×680 | 1800×760 | 2150×840 | 2400×920 | 2400×1200 |
| サンプル | サンプル |
|---|---|
| サンプル | サンプル |
Note: These specifications are subject to change without notice.
