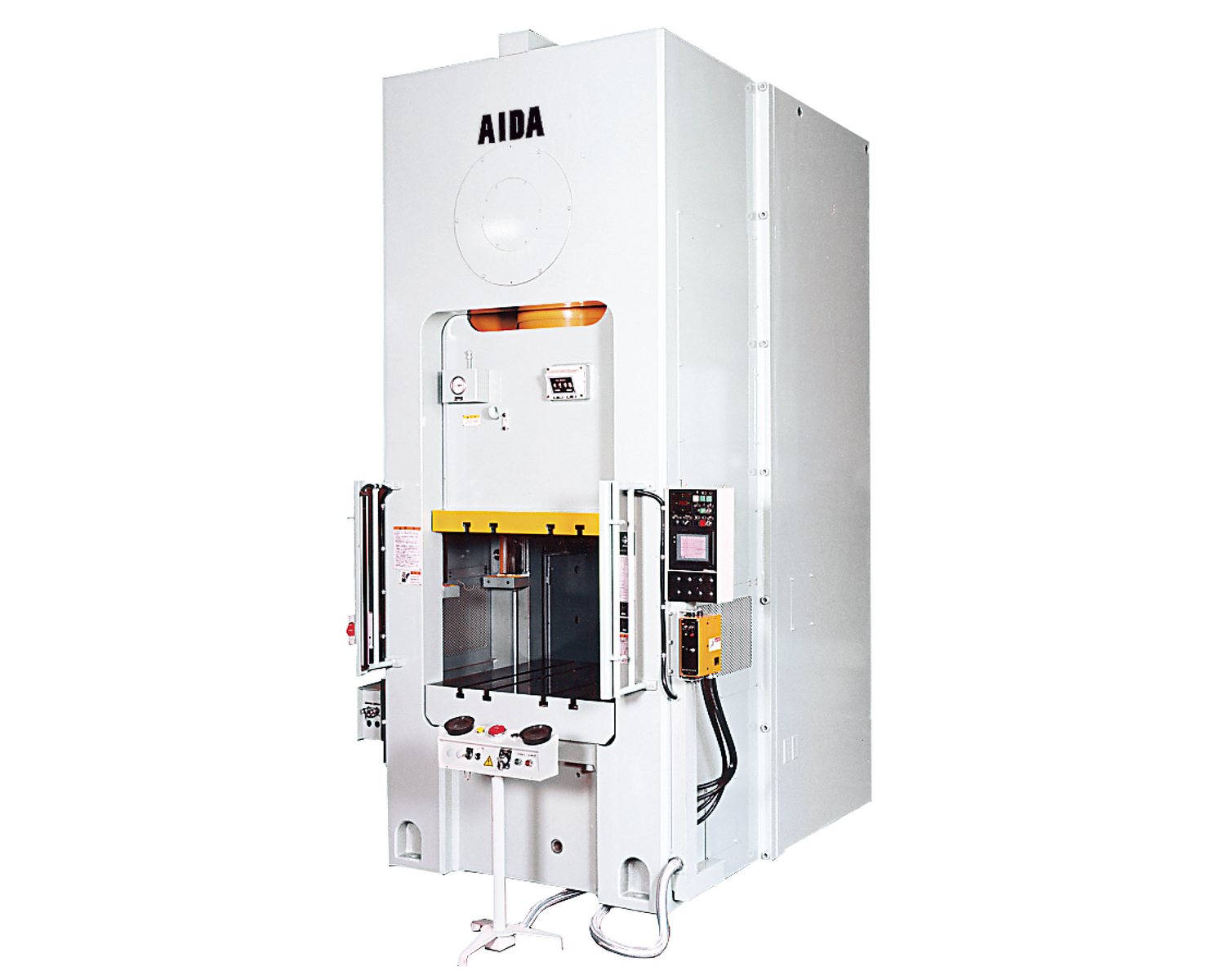

S1-E
Thick Plate Forming
x
Link Motion
Overcomes the three limitations--shortened
die life, vibration, and noise--related to
the forming of thick materials.
※Eligible for tax incentives.
Product Specifications
| Model | Unit | S1-3000E | S1-5000E |
| Capacity | （kN） | 3000 | 5000 |
| stroke length | （mm） | 250 | 300 |
| Continuous spm (No Load) | （min-1） | 15～40 | 15～35 |
| Die height | （mm） | 570 | 650 |
| Slide area (LR×FB) | （mm） | 1000x900 | 1200x1100 |
| Bolster area (LR×FB) | （mm） | 1000x985 | 1200x1215 |
Note: These specifications are subject to change without notice.
