High Speed Automatic Presses

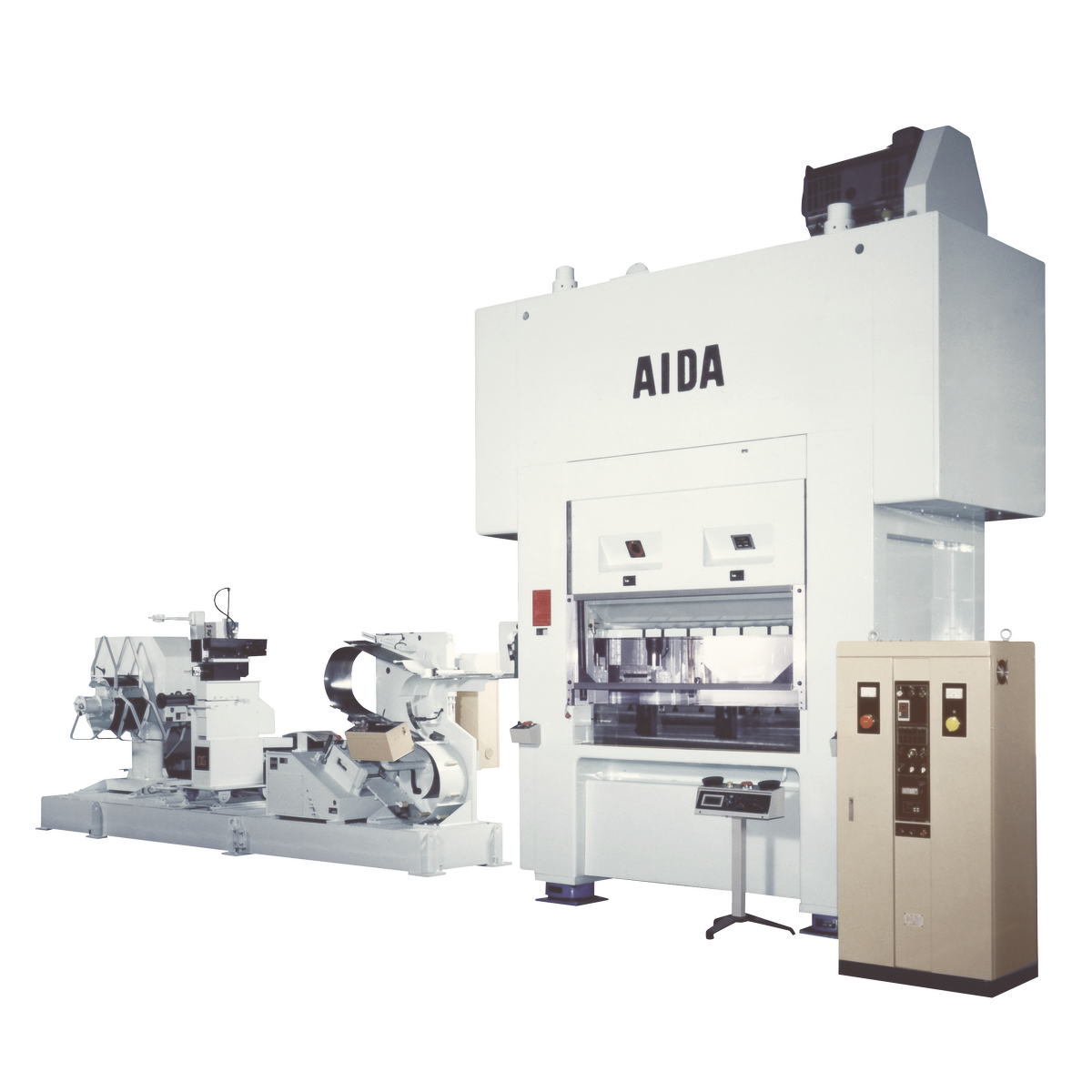

HMX-M
High-Precision Forming
x
High Speed
Stable high-precision forming
with advanced cost performance.
Product Specifications
| Model | Unit | HMX-1250M | HMX-2000M |
| Capacity | （kN） | 1250 | 2000 |
| stroke length | （mm） | 30*1 | 30*1 |
| Continuous spm (No Load) | （min-1） | 160～500 | 160～450 |
| Die height | （mm） | *2 380～430 | *2 400～480 |
| Slide area (LR×FB) | （mm） | 1300×600 | 1700×650 |
| Bolster area (LR×FB) | （mm） | 1300×850 | 1700×950 |
*1: Stroke lengths up to 80 mm are available.
*2: Please select a die height within the above ranges.
Note: These specifications are subject to change without notice.
Catalog Download
HMX-M Catalog

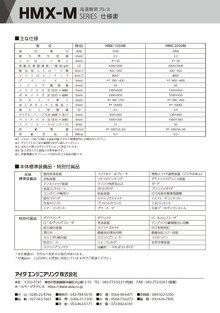

HMX-M Specification Sheet
