MSP
High Productivity
x
High-Precision
Forming
x
Stability
Specialized press designs for
the production of
thin-sheet motor cores essential for
next-generation eco-friendly vehicles
deliver high speed, high-accuracy, and
high-stability production.
Product Features

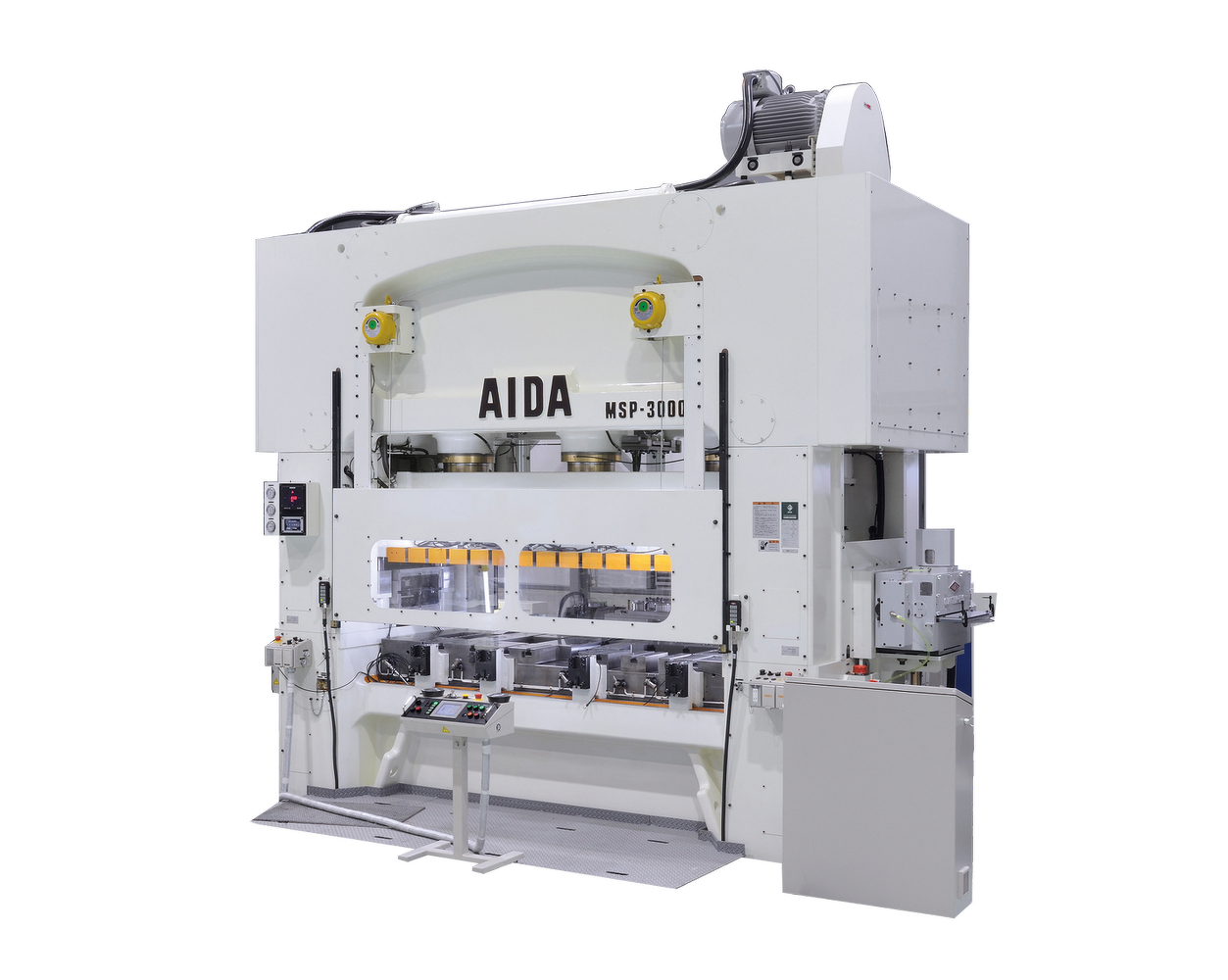

AIDA's Unique High-Speed Press Design
AIDA's unique multi-suspension design coupled with a wide, highly rigid frame enable stable bottom dead center accuracy.
This enables the forming of motor core laminations from thin sheets using high-precision dies. (MSP-3000-370)
downloading specification sheets.
Large Drive Motor Core Production
This is a new global standard machine that is highly regarded in Europe, the United States, and also Asia as a forming line for drive motors that must deliver high efficiency and which are being made from thinner and thinner sheets.
downloading specification sheets.
High-Efficiency Motor Production
AIDA provides a lineup of production systems--including peripheral equipment--optimized for stable high-speed production.
AIDA's Manufacturing Prowess Delivers
High Precision
We machine high-precision parts in-house, and our personnel hand-finish critical areas.
We leverage traceability control in our manufacturing processes (machining, assembly, and inspection) to comprehensively control the quality of the presses we ship.
Press Parts
Industrial A/C Compressor
O.D. Φ160 mm
Residential A/C Compressor
O.D. Φ110 mm
EV Motor Core (Prototype)
O.D. Φ260 mm
Product Specifications
| Model | Unit | MSP-2200-200 | MSP-3000-230 | MSP-3000-270 | MSP-3000-330 | MSP-3000-370 | MSP-4000-280 | MSP-4000-330 |
| Capacity | （kN） | 2200 | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 |
| stroke length | （mm） | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Continuous spm (No Load) | （min-1） | 120～500 | 120～450 | 100～420 | 100～410 | 100～360 | 100～350 | 100～300 |
| Die height | （mm） | 420～480 | 420～520 | 470～520 | 520～620 | 520～620 | 500～600 | 500～600 |
| Slide area (LR×FB) | （mm） | 2000×800 | 2300×800 | 2700×800 | 3300×900 | 3700×1000 | 2800×900 | 3300×900 |
| Bolster area (LR×FB) | （mm） | 2000×1000 | 2300×1000 | 2700×1000 | 3300×1000 | 3700×1200 | 2800×1200 | 3300×1200 |
Note: These specifications are subject to change without notice.
Catalog Download
MSP Catalog

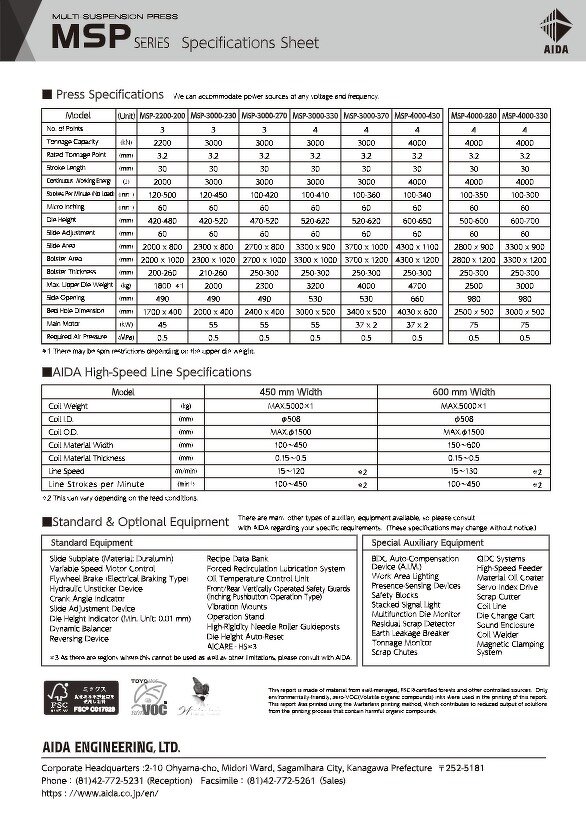

MSP Specification Sheet
