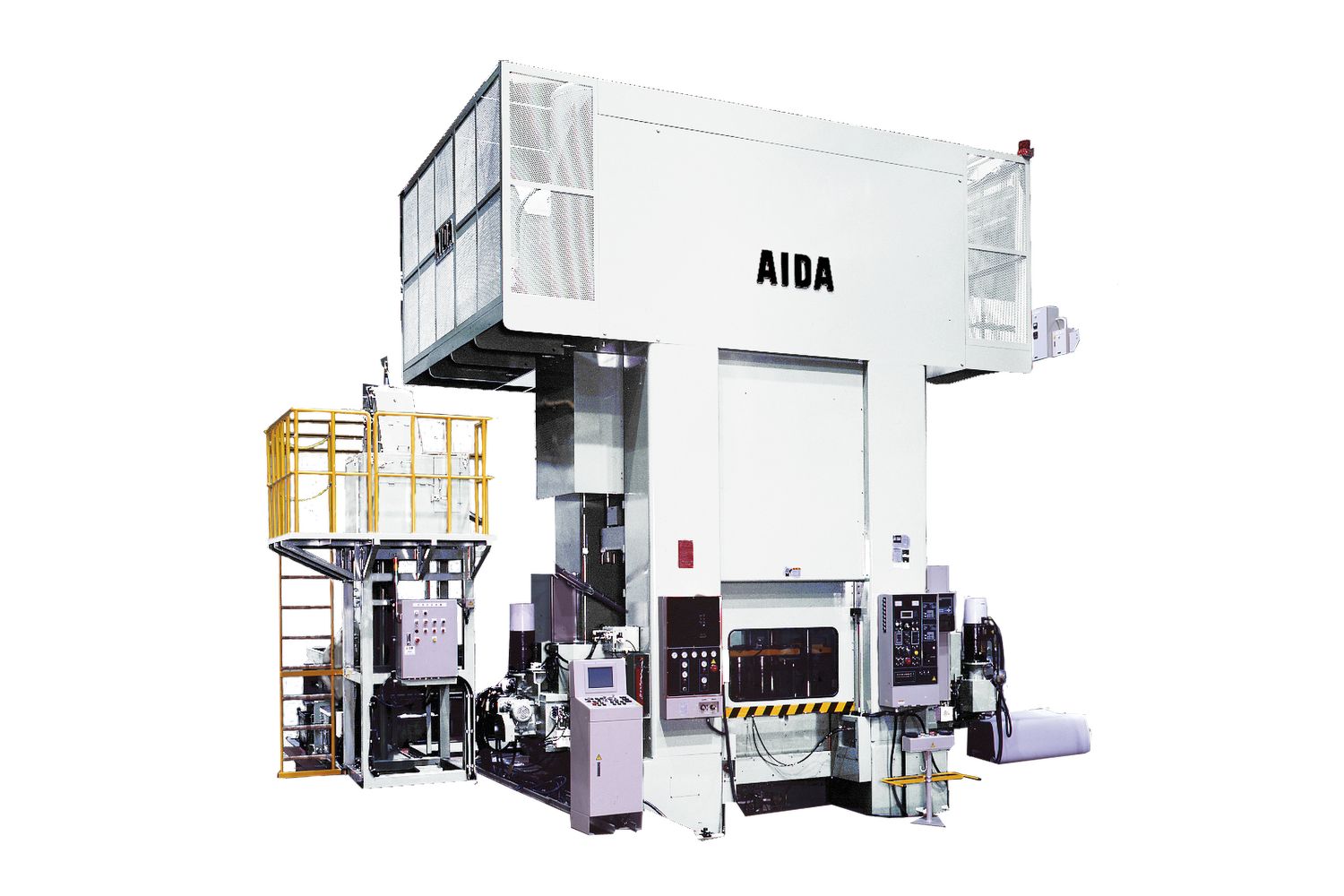

FMX
Link Motion
x
Multi-Stage Cold Forging
Suitable for the extrusion forming
of long parts with stepped shapes,
transfer forming of slugs, cold forging of metal plate slugs,
and closed-die cold forging applications.
Product Specifications
| Model | Unit | FMX-6300 | FMX-8000 | FMX-10000 | FMX-12000 | ||||
| Capacity | （kN） | 6300 | 8000 | 10000 | 12000 | ||||
| stroke length | （mm） | 300 | 400 | 300 | 400 | 300 | 400 | 300 | 400 |
| Continuous spm (No Load) | （min-1） | 20～30 | 15～25 | 15～30 | 15～25 | 15～30 | 15～25 | 15～30 | 15～25 |
| Die height | （mm） | 650 | 1000 | 650 | 1000 | 700 | 1000 | 650 | 1100 |
| Slide area (LR×FB) | （mm） | 1100x1000 | 1200x1000 | 1200x1000 | 1300x1200 | 1250x1000 | |||
| Bolster area (LR×FB) | （mm） | 1100x1000 | 1200x1000 | 1200x1000 | 1300x1200 | 1250x1000 | |||
Note: These specifications are subject to change without notice.
