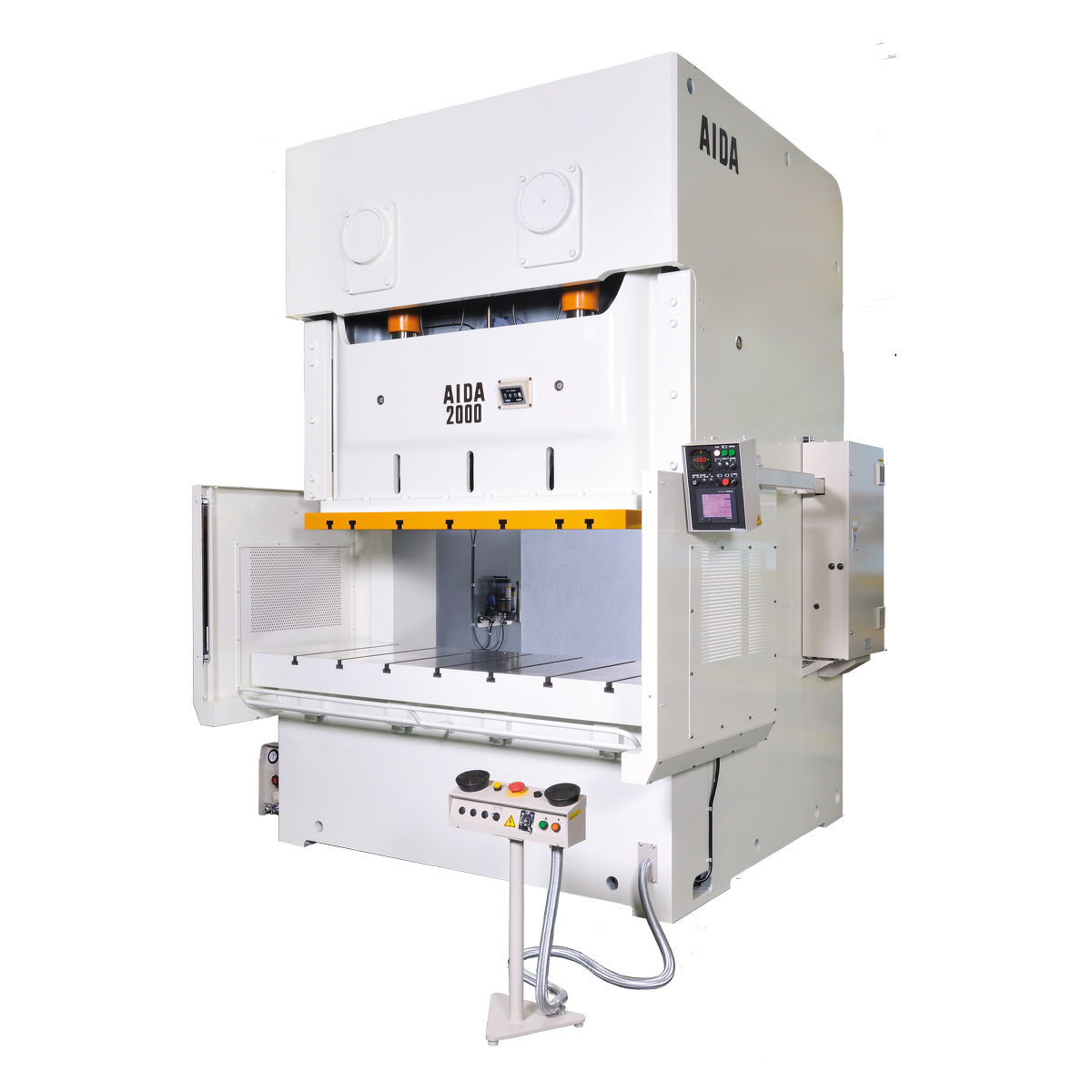

NC2-E
System Upgrades
x
Basic Machines
Features a highly rigid frame
and a counter-rotating gear design
that can withstand eccentric loading.
The system can be flexibly upgraded
with all types of peripheral devices.
※Eligible for tax incentives.

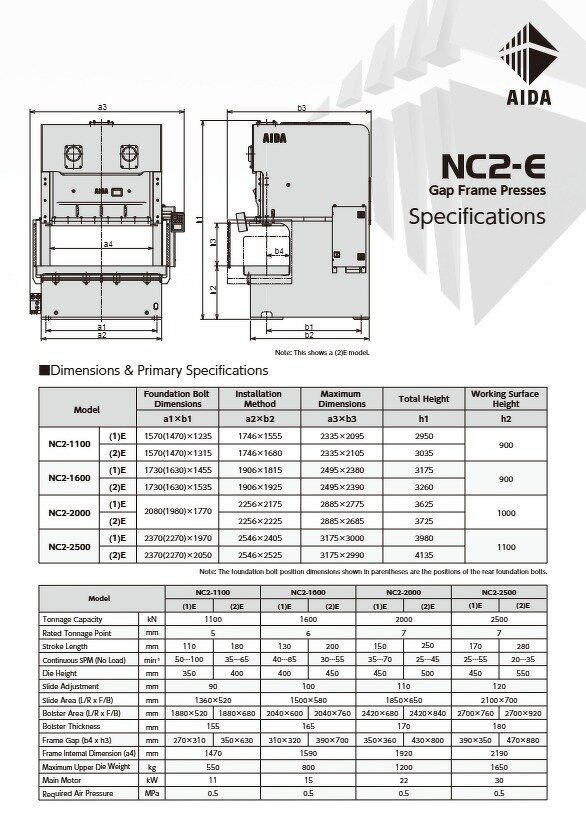

Product Specifications
| Model | NC2-1100 | NC2-1600 | NC2-2000 | NC2-2500 | NC1-800 | ||||||
| Unit | (1)E | (2)E | (1)E | (2)E | (1)E | (2)E | (1)E | (2)E | (1)E | (2)E | |
| Capacity | （kN） | 1100 | 1600 | 2000 | 2500 | 800 | |||||
| stroke length | （mm） | 110 | 180 | 130 | 200 | 150 | 250 | 170 | 280 | 100 | 160 |
| Continuous spm (No Load) | （min-1） | 50～100 | 35～65 | 40～85 | 30～55 | 35～70 | 25～45 | 25～55 | 20～35 | 55～110 | 40～75 |
| Die height | （mm） | 350 | 400 | 400 | 450 | 450 | 500 | 450 | 550 | 300 | 320 |
| Slide area (LR×FB) | （mm） | 1360×520 | 1500×580 | 1850×650 | 2100×700 | 540×460 | |||||
| Bolster area (LR×FB) | （mm） | 1880×520 | 1880×680 | 2040×600 | 2040×760 | 2420×680 | 2420×840 | 2700×760 | 2700×920 | 950×460 | 950×600 |
| サンプル | サンプル |
|---|---|
| サンプル | サンプル |
Note: These specifications are subject to change without notice.
