DSF-N2
-4000A
Tough
x
Smart

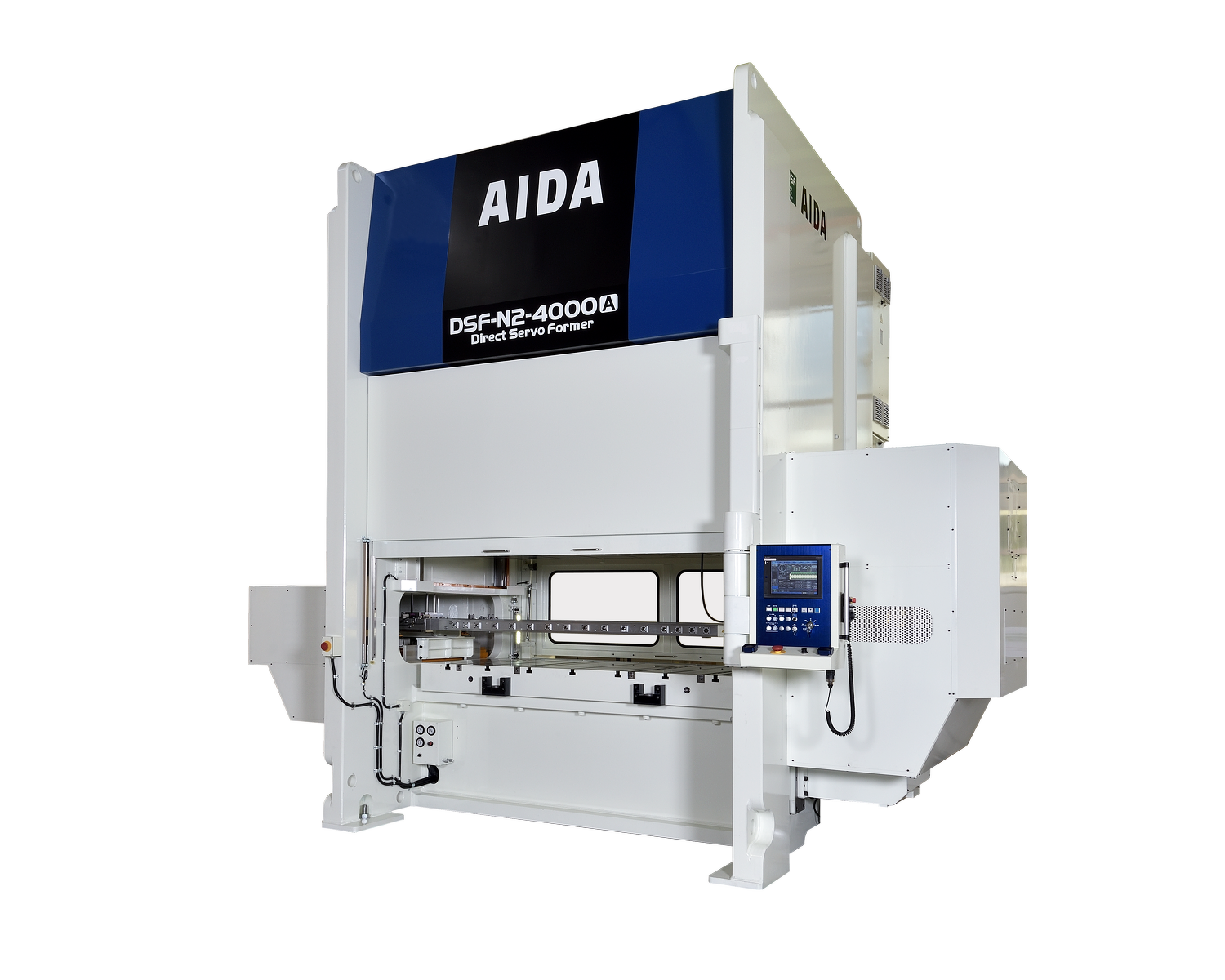

A 2-point servo press
with an evolved frame and brain.
Opening new dimensions
in metalforming.
Product Features
The DSF-N2-4000A enables multi-stage high-precision forming.
The left-to-right slide area has been increased 123% compared to the previous model and productivity is boosted 166% compared to the previous model. The newly designed unibody frame greatly enhances dynamic accuracy and rigidity.
Showcasing Functionality -- Production
The operator HMI has been updated to improve operability.
User Case Study
DSF-N2-4000A R&D Engineers' Interview
Koji Inoue (Controls Eng. Section 2, Group 1, STD. Eng. Dept.)
Toshihiro Katsu (Mech. Eng. Section 1, Group 4, Precision Eng. Dept.)
We asked the lead mechanical engineer and the lead controls engineer to talk about what went on behind the scenes and their thoughts as they were developing the DSF-N2-4000A Series.
Product Specifications
| Model | Unit | DSF-N2-4000A |
| Capacity | （kN） | 4000 |
| Slide Stroke | （mm） | 350 |
| No-Load SPM | （min-1） | 1～50 |
| Die Height | （mm） | 650 |
| Slide Dimensions (L/R x F/B) | （mm） | 2600×1000 |
| Bolster Dimensions (L/R x F/B) | （mm） | 2600×1200 |
Note: These specifications are subject to change without notice.
Catalog Download
DSF-N2-4000A Brochure
