Mid-Size and Large Servo Presses

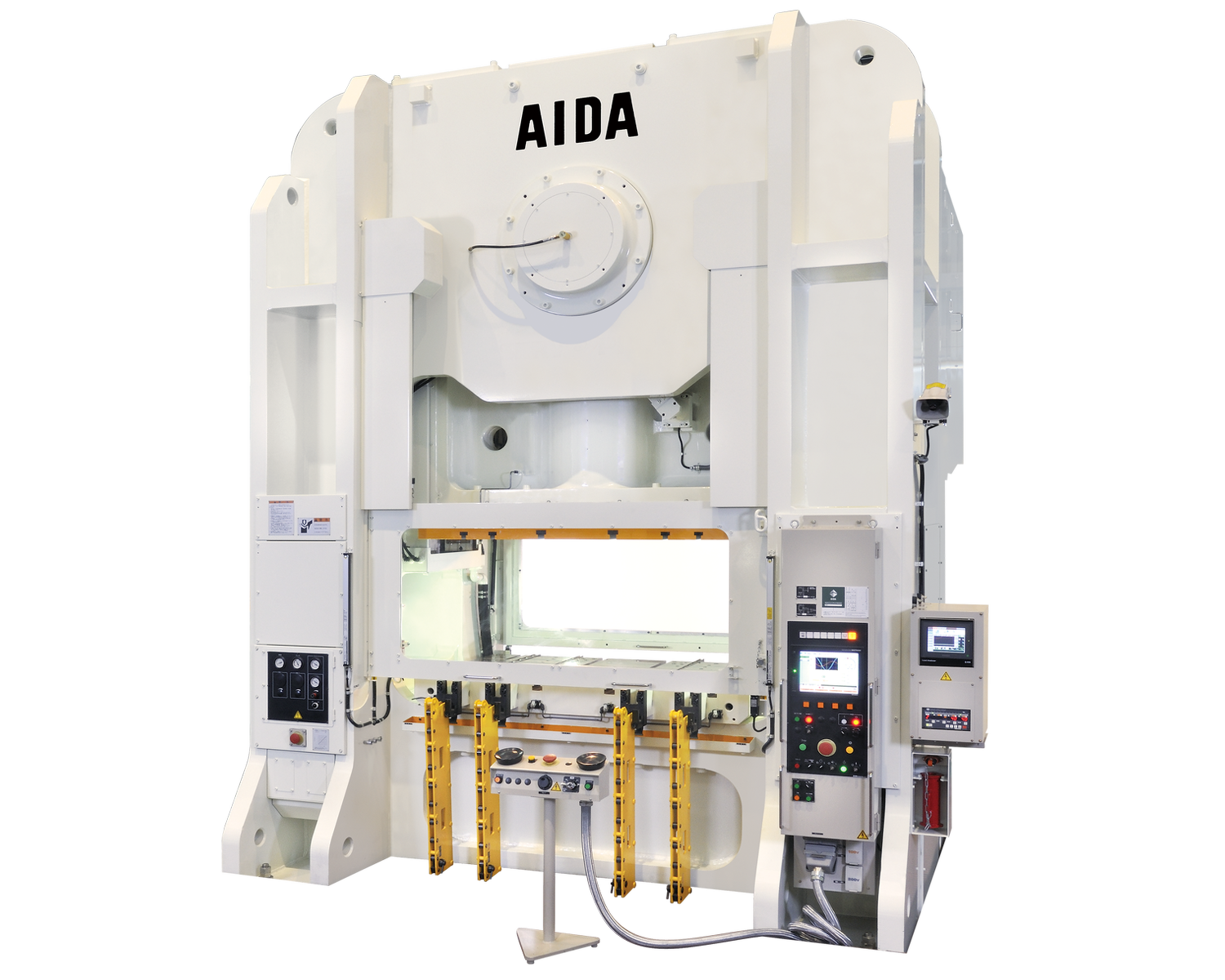

DSF-U
UL Series
x
Servo
Servo presses with the unparalleled dynamic accuracy
of UL Series presses.
Two-point wide-area models are also available.
Product Specifications
| Model | Unit | DSF-U1-3000-200-90 | DSF-U1-4000-200-90 | DSF-U1-6000-185-100 |
| Capacity | （kN） | 3000 | 4000 | 6000 |
| stroke length | （mm） | 300 | 250 | 200 |
| Continuous spm (No Load) | （min-1） | 1～60 | 1～70 | 1～30 |
| Die height | （mm） | 560 | 900 | 700 |
| Slide area (LR×FB) | （mm） | 2000×900 | 2000×900 | 1850×1000 |
| Bolster area (LR×FB) | （mm） | 2000×1000 | 2000×1000 | 1850×1100 |
※We have other specifications aside from the ones shown above. Please contact AIDA for more details.
Note: These specifications are subject to change without notice.
