Product Lineup
Mid-Size and Large Presses
SMX
High Precision
x
High Rigidity
Optimal for forming midsize
and large panels
and for deep-draw applications.

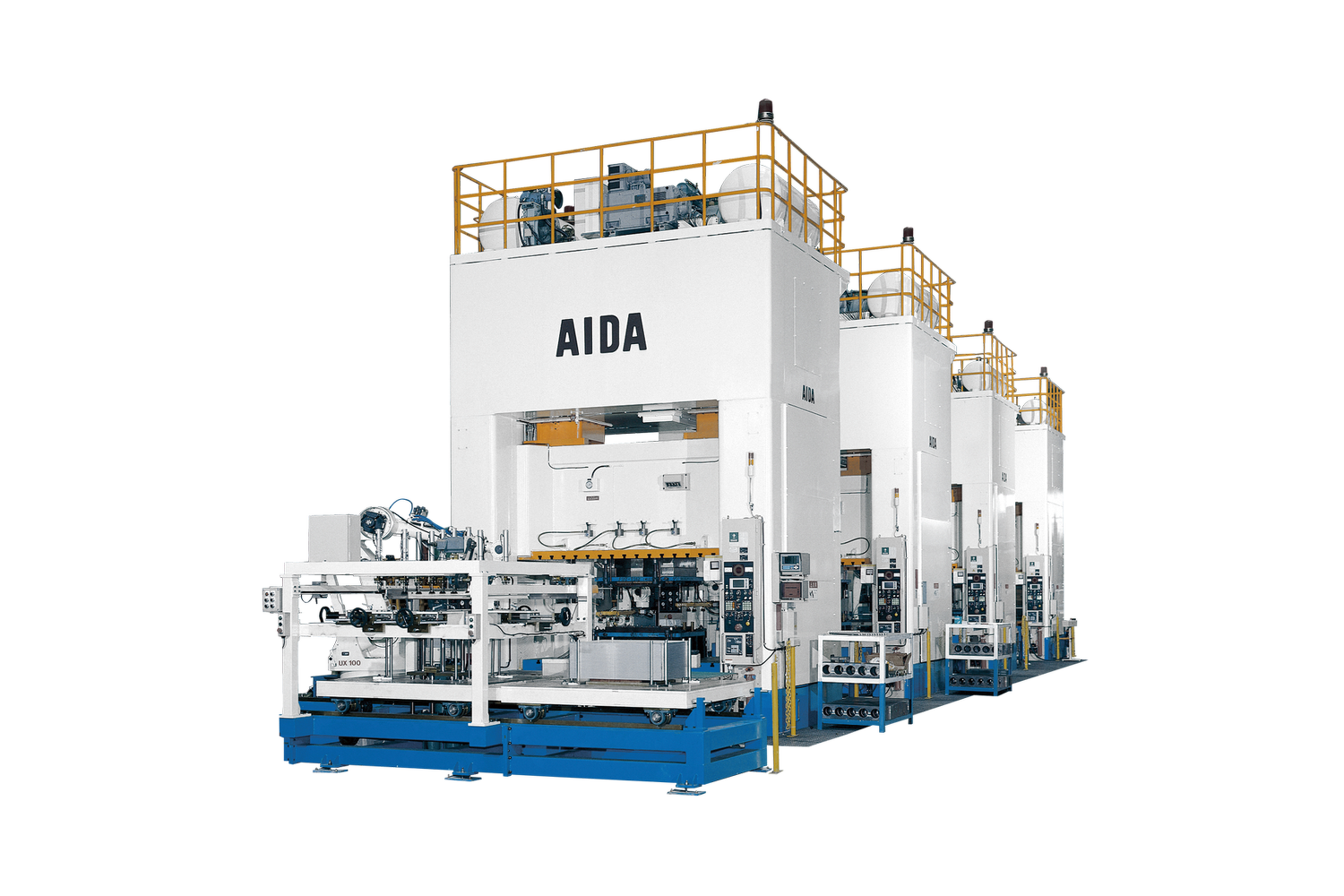

We also provide fully automatic
tandem line systems.
Product Specifications
| Model | SMX-Ⅱ-3000 | SMX-Ⅱ-4000 | SMX-Ⅱ-5000 | SMX-Ⅱ-6000 | |||||
| Unit | S2/L2 | S2/L2 | S2/L2 | S2/L2 | S2 | ||||
| Capacity | （kN） | 3000 | 4000 | 5000 | 6000 | ||||
| stroke length | （mm） | 460 | 500 | 460 | 510 | 460 | 510 | 510 | 600※ |
| Continuous spm (No Load) | （min-1） | 15～30 | 15～30 | 15～30 | 15～20 | ||||
| Die height | （mm） | 700 | 800 | 800 | 900 | 800 | 900 | 900 | |
| Slide area (LR×FB) | （mm） | 2150×1250 | 2450×1250 | 2500×1250 | 2750×1250 | 2500×1400 | 2750×1400 | 2750×1500 | |
| Bolster area (LR×FB) | （mm） | 2150×1400 | 2450×1400 | 2500×1400 | 2750×1400 | 2500×1500 | 2750×1500 | 2750×1500 | |
※Crank motion only
・Standard specifications range from 3000 kN to 6000 kN. Custom presses with higher capacities can also be provided.
・These specifications are subject to change without notice.
