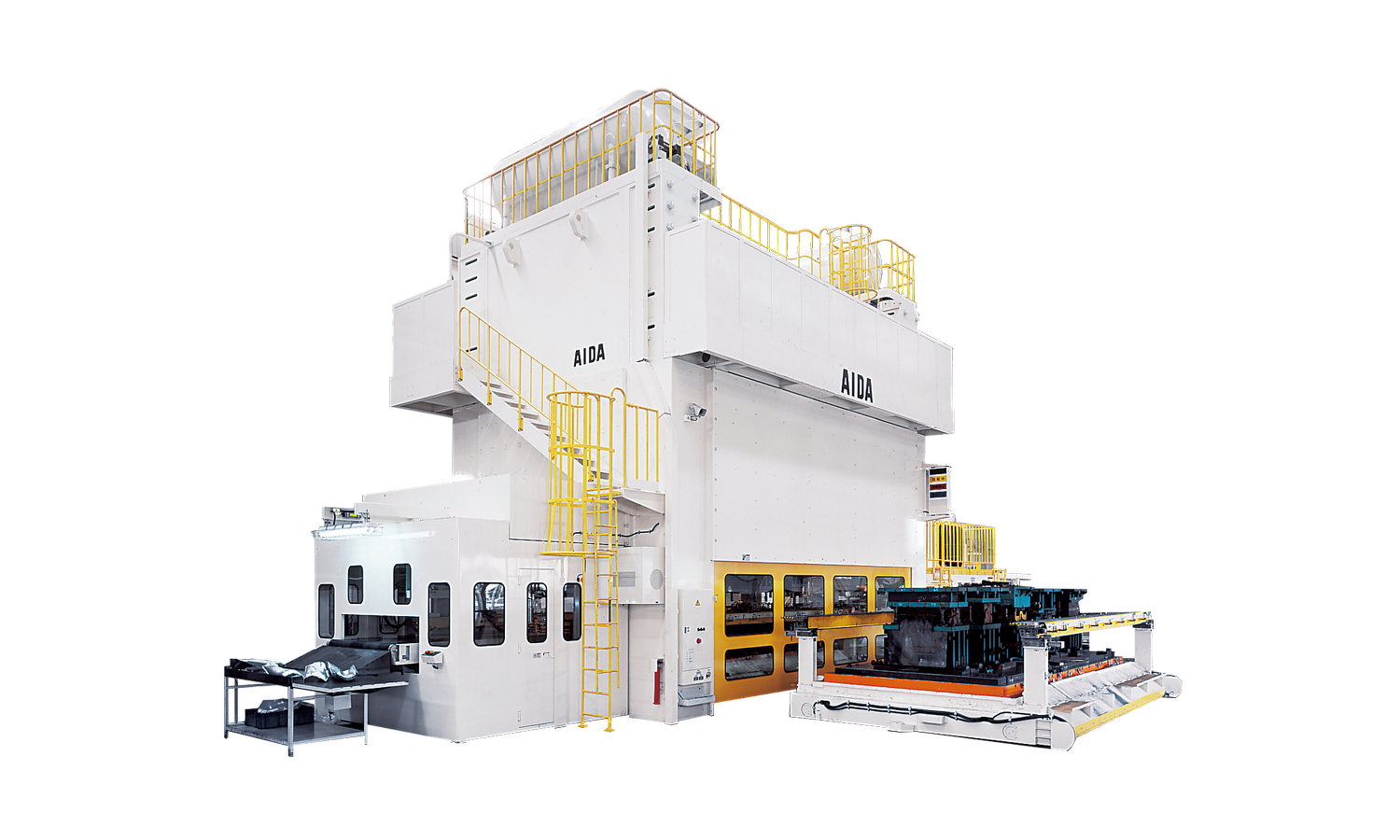

TMX
Diverse Production
x
Transfer Forming
Reliable transfer presses
developed through extensive experience
and with a proven track record.
Enables maximum production diversity and stability.
Product Specifications
Model | Unit | TMX-3000 | TMX-4000 | TMX-5000 | TMX-6000 | TMX-8000 |
Capacity | (kN) | 3000 | 4000 | 5000 | 6000 | 8000 |
Rated capacity point | (mm) | 13 | 13 | 13 | 13 | 13 |
stroke length | (mm) | 360 | 410 | 460 | 510 | 510 |
Continuous spm (No Load) | (min-1) | 20~40 | 15~35 | 15~35 | 15~35 | 15~35 |
Die height | (mm) | 750 | 750 | 900 | 900 | 1060 |
Slide adjustment | (mm) | 100 | 100 | 100 | 100 | 170 |
Slide area (LR×FB) | (mm) | 2850x1000 | 3600x1200 | 3600x1200 | 3600x1200 | 3600x1600 |
Bolster area (LR×FB) | (mm) | 2850x1000 | 3600x1200 | 3600x1200 | 3600x1200 | 3600x1600 |
Model | Unit | TMX-10000 | TMX-12000 | TMX-15000 | TMX-20000 | TMX-25000 | TMX-30000 | TMX-35000 |
Capacity | (kN) | 10000 | 12000 | 15000 | 20000 | 25000 | 30000 | 35000 |
Rated capacity point | (mm) | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
stroke length | (mm) | 800 | 650 | 800 | 750 | 800 | 800 | 800 |
Continuous spm (No Load) | (min-1) | 12~30 | 15~30 | 13~30 | 13~30 | 13~30 | 13~30 | 13~30 |
Die height | (mm) | 1000 | 1000 | 1100 | 1150 | 1200 | 1200 | 1200 |
Slide adjustment | (mm) | 200 | 200 | 200 | 200 | 250 | 250 | 250 |
Slide area (LR×FB) | (mm) | 5100x1800 | 4800x1600 | 5400x2200 | 6000x2000 | 6150x2300 | 6150x2300 | 6150x2300 |
Bolster area (LR×FB) | (mm) | 5100x1800 | 4800x1600 | 5400x2200 | 6000x2000 | 6150x2300 | 6150x2300 | 6150x2300 |
※We have other specifications aside from the ones shown above. Please contact AIDA for more details.
※2-point models up to 16000 kN and 4-point models up to 12000 kN are available.
Note: These specifications are subject to change without notice.
