Product Lineup

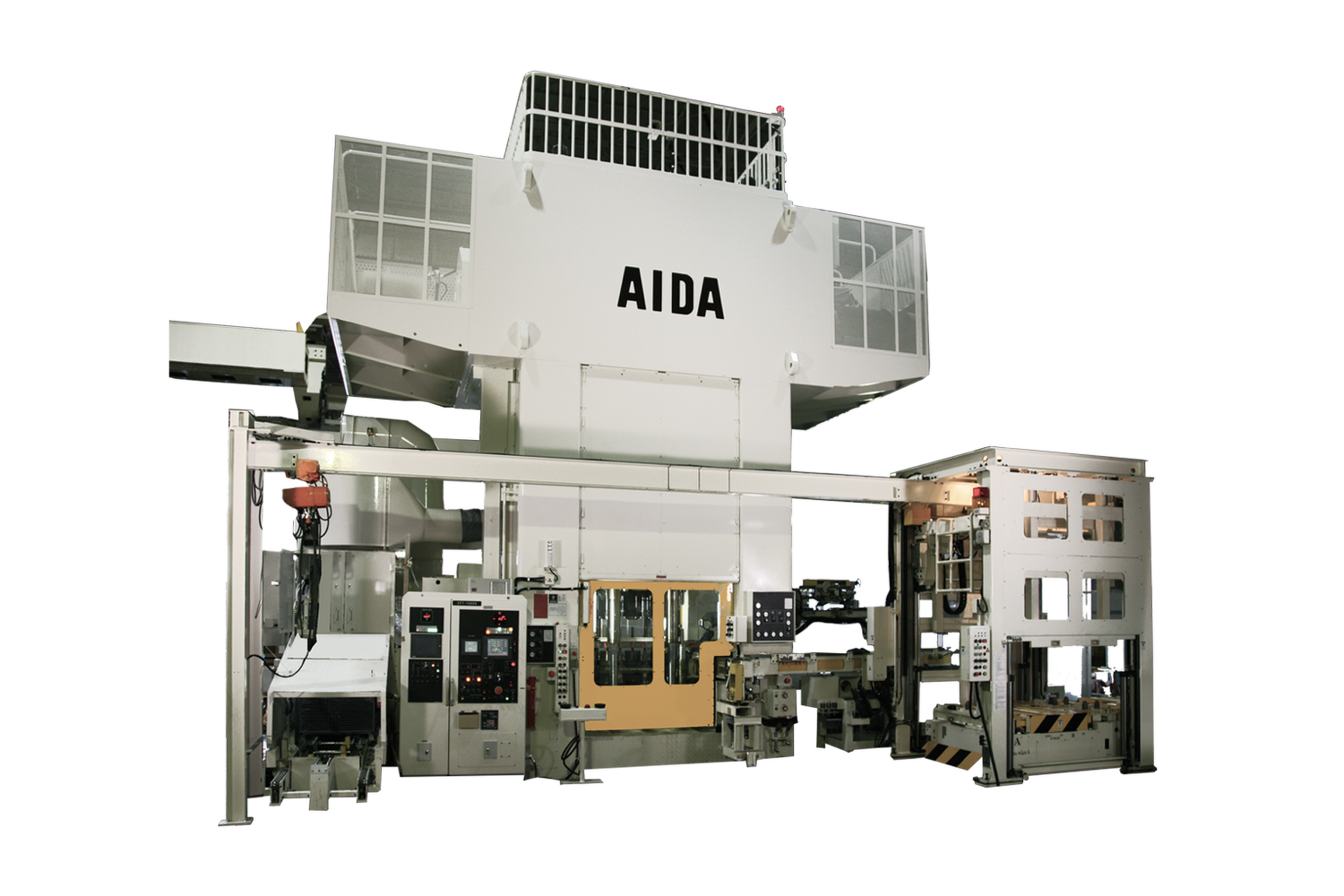

Cold Forging Presses
CFT
Crank Motion
x
Multi-Stage Cold Forging
The superior off-center loading capability
expands the range of die process design possibilities.
Product Specifications
| Model | Unit | CFT-6000 | CFT-8000 | CFT-10000 | CFT-12000 |
| Capacity | （kN） | 6000 | 8000 | 10000 | 12000 |
| stroke length | （mm） | 250 | 250 | 250 | 250 |
| Continuous spm (No Load) | （min-1） | 30～45 | 25～35 | 25～35 | 20～30 |
| Die height | （mm） | 650 | 650 | 650 | 650 |
| Slide area (LR×FB) | （mm） | 1200x750 | 1200x750 | 1500x1000 | 1500x1000 |
| Bolster area (LR×FB) | （mm） | 1200x900 | 1200x900 | 1500x1100 | 1500x1100 |
Note: These specifications are subject to change without notice.
