Press Parts press_parts

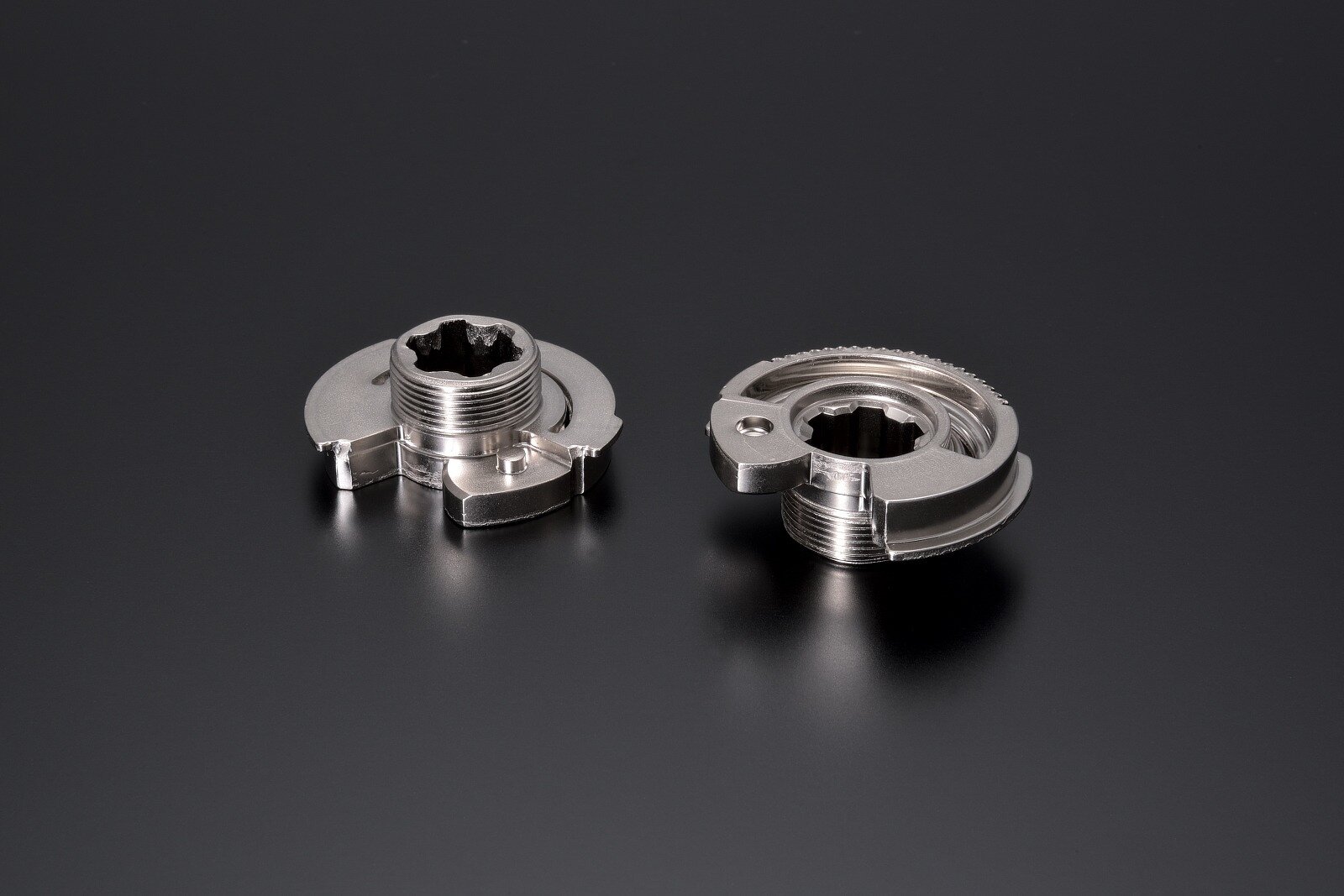

Application | Seat Belt Retractor Part (Provided by Sugimura Seiko Co., Ltd.) |
Material | S35CB |
Production Method | Transfer (16 Stages) |
Press Model | UL-6000/UL-3000 |
Production SPM | 20 min-1 |
Forming Highlights
・Three-dimensional forming from wire material
・Partial exterior gear forming with a module equivalent to 0.6; thickness of 5.8 mm
・Partial gear die roll amount is less 0.7 or less, and the shear surface is 80 or higher
・Inside diameter spline thickness is 13.4, and the shear surface is 70% or higher
