Press Parts press_parts

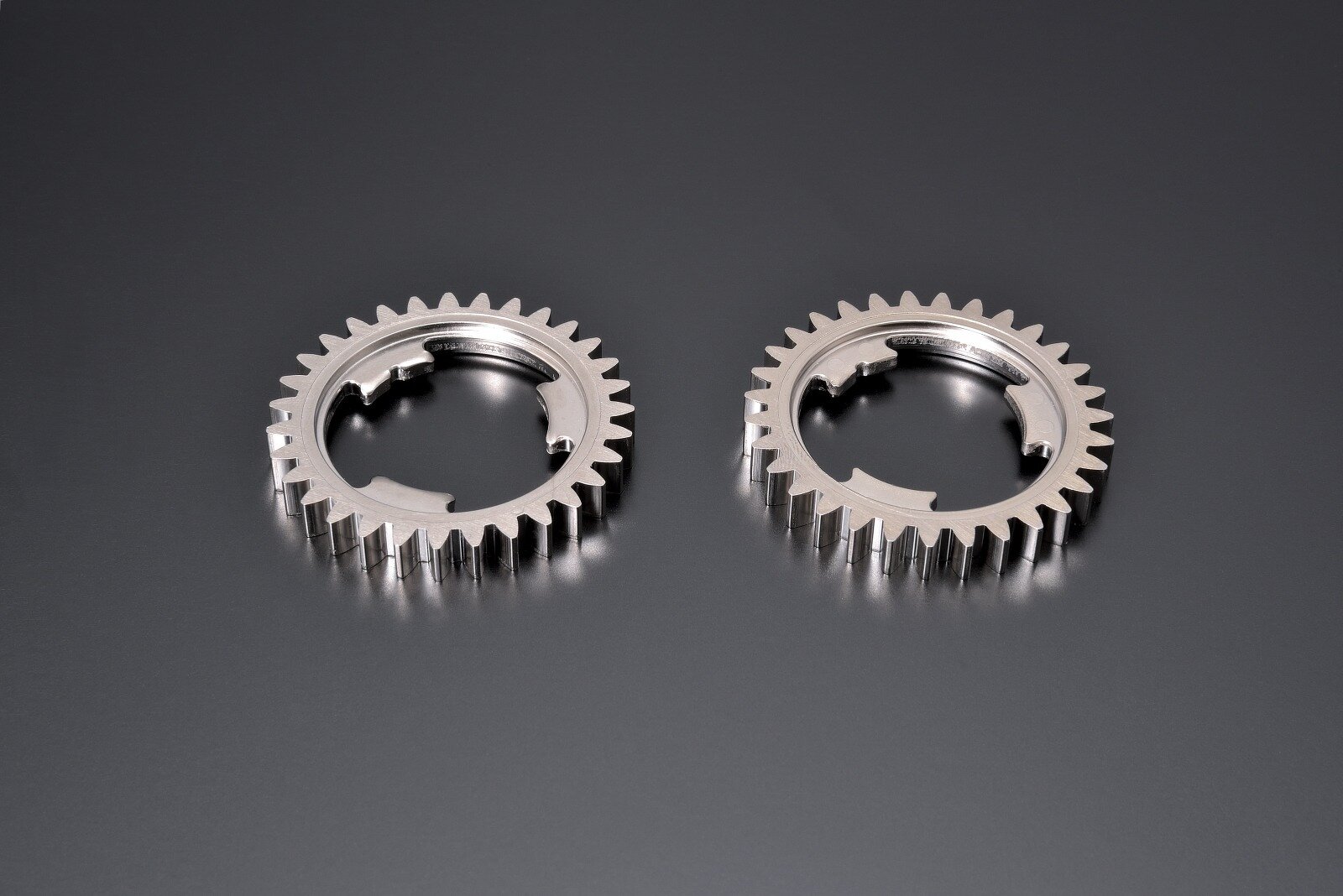

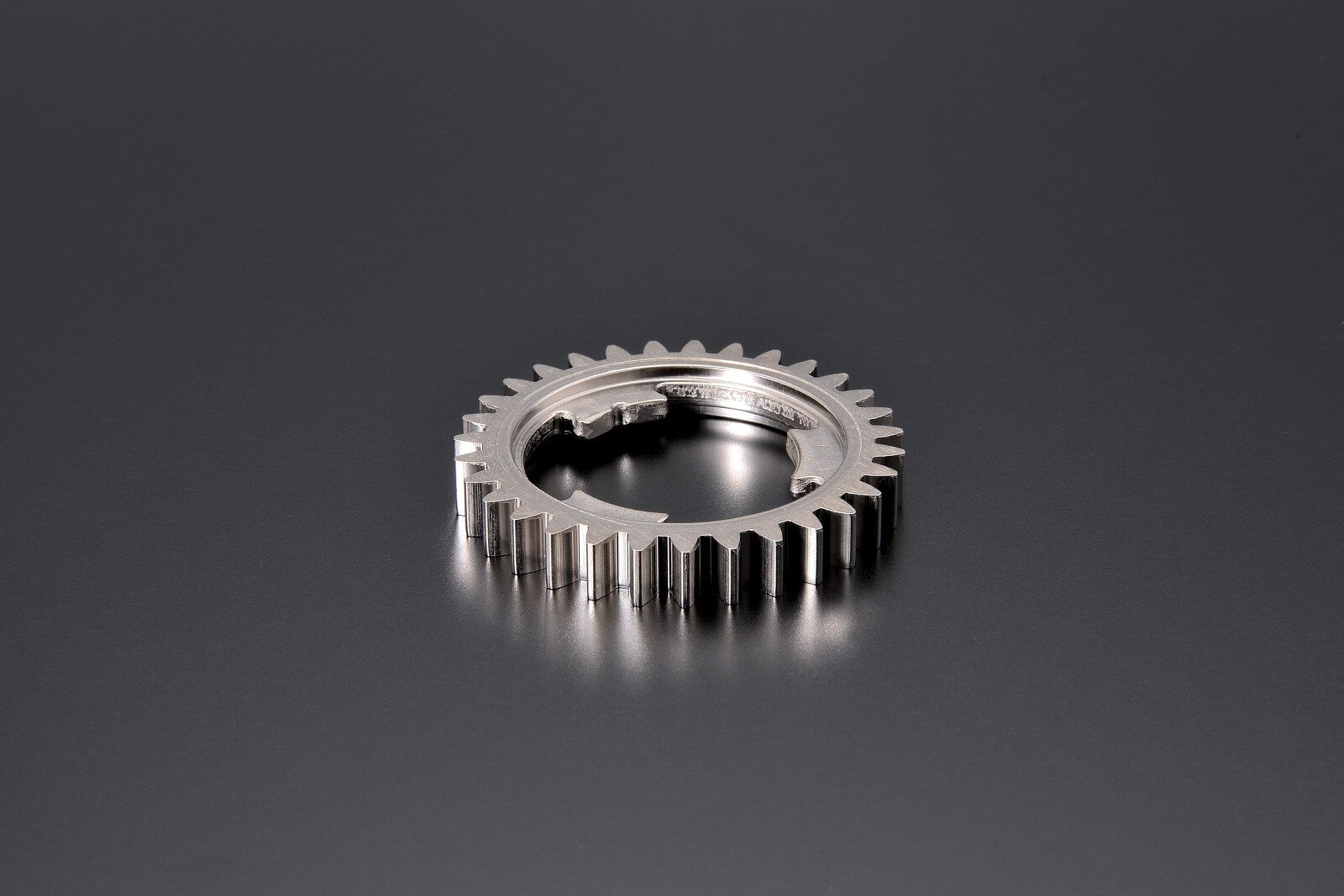

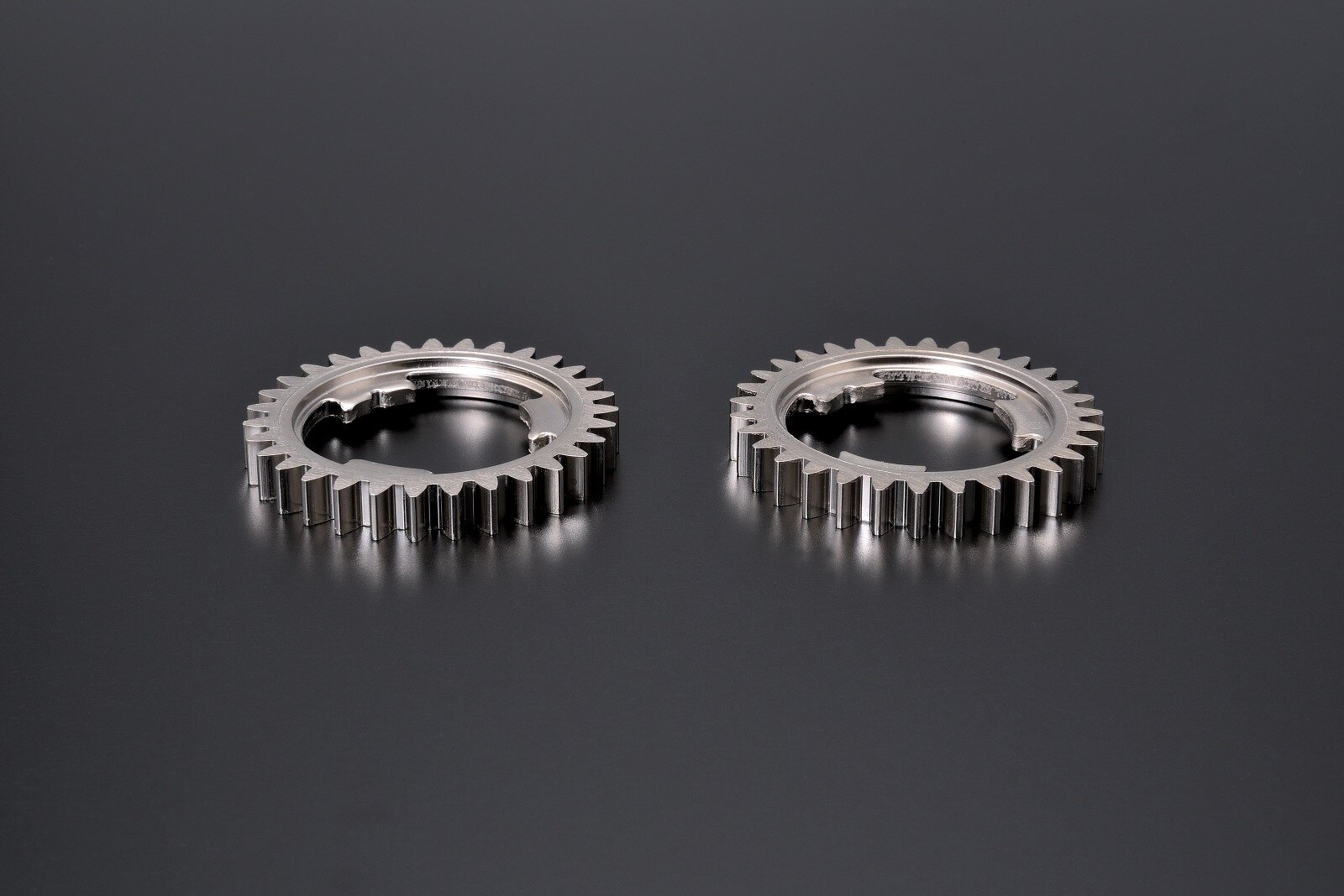

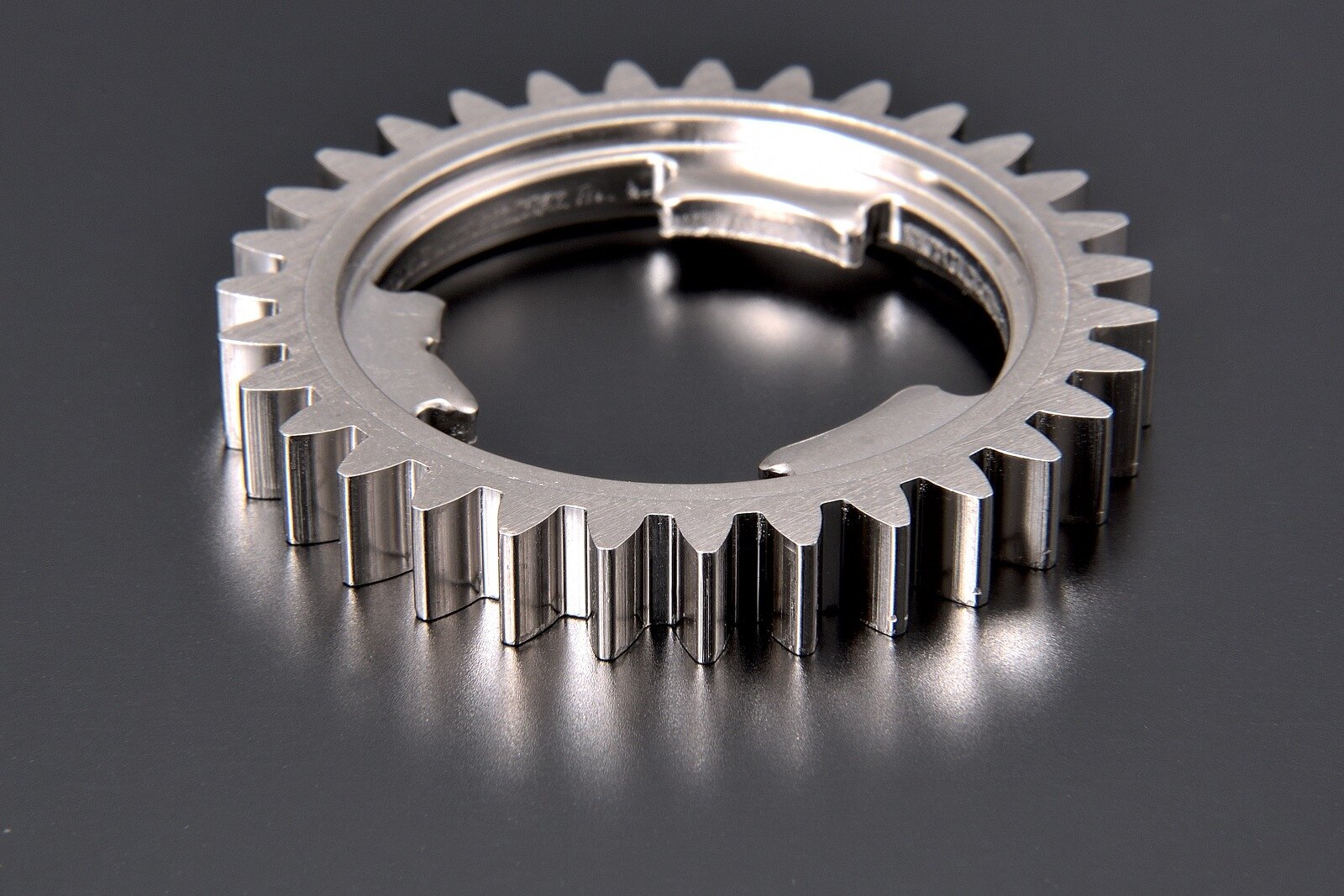

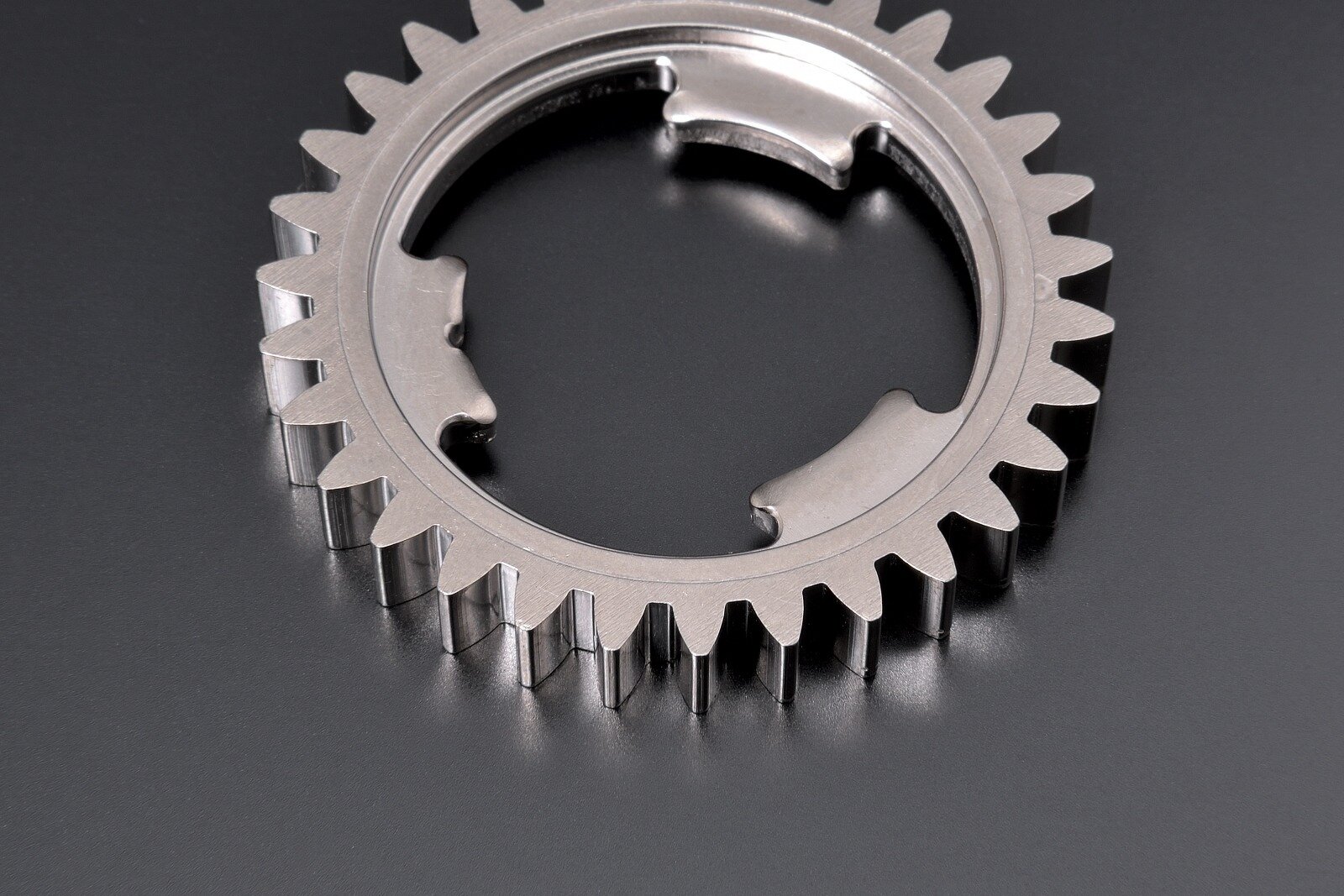

| Application | Wastegate Valve Motorized Actuator Component (Provided by Sugimura Seiko Co., Ltd.) |
| Material | SPHC (Thickness: 5.6 mm) |
| Production Method | Progressive + Transfer Forming (7 Stages) |
| Press Model | UL-3000 |
| Production SPM | 20 min-1 |
Forming Highlights
・Press-forming of the gear area. (Gear accuracy after heat treatment: Class 9, JIS B 1702-1:2016)
・Full shear forming (Shear surface ratio including die roll: ≥90% of the material thickness)
・Control of the die roll (Die Roll Amount: Approx. 0.3 mm)
・Carbonitriding quenching and tempering
